Jeep engine driven air compressor
southpier
Visit this Community
Alberta, Canada
Joined: December 11, 2009
KitMaker: 531 posts
Armorama: 310 posts
Posted: Wednesday, January 22, 2020 - 10:56 PM UTC
how was this used?

http://jeepdraw.com/images/T1-Brackets-Paulie03.jpg

http://jeepdraw.com/images/T1-Brackets-Paulie04.jpg

http://jeepdraw.com/images/T1-Compressor-kit.jpg

http://jeepdraw.com/images/T1-Box-Paulie09.jpg

I don't see a point where the airhose is connected. or was it strictly for "on-board" air to power something?

thanks
RobinNilsson
Staff MemberTOS Moderator
KITMAKER NETWORK
Visit this Community
Stockholm, Sweden
Joined: November 29, 2006
KitMaker: 5,918 posts
Armorama: 4,959 posts
Posted: Wednesday, January 22, 2020 - 11:30 PM UTC

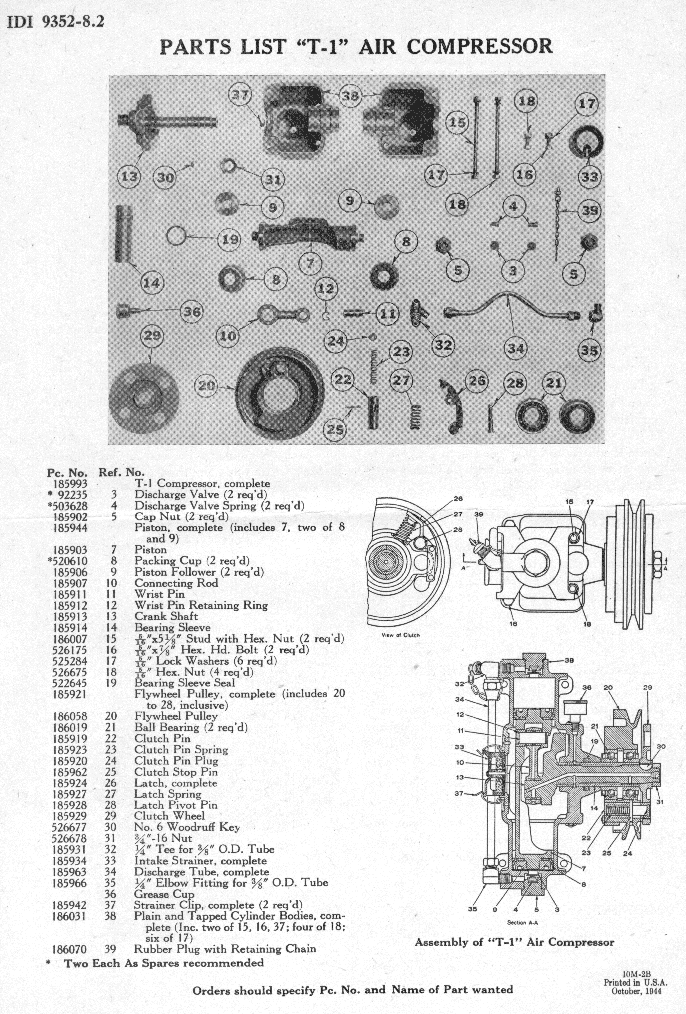

Pipe in upper right corner looks like a possible connection point, I think it is nr 32 in the parts diagram


The b&w image on the instruction sheet shows the connection point facing the camera with the cover plug (part nr 39) in place

/ Robin
southpier
Visit this Community
Alberta, Canada
Joined: December 11, 2009
KitMaker: 531 posts
Armorama: 310 posts
Posted: Thursday, January 23, 2020 - 12:10 AM UTC
got it; thanks
