Hey guys, just wondering if anyone can point me in the right direction concerning the interior of the M4 High Speed Tractor. Thanks for any help.
petbat
Visit this Community
Queensland, Australia
Joined: August 06, 2005
KitMaker: 2,150 posts
Armorama: 2,044 posts
Posted: Saturday, July 06, 2019 - 05:50 PM UTC
Any thing specific? Google brings up a lot if you try a search.

http://hmvf.co.uk/topic/20770-m4-high-speed-tractor-picture-walk-around/

http://www.toadmanstankpictures.com/m4_hst.htm

http://www.mafva.net/other%20pages/M4A1%20high%20speed%20tractor.htm
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 12:42 AM UTC
It is always a good idea to include a search of Armorama's past threads as well:

http://armorama.com/modules.php?op=modload&name=SquawkBox&file=index&req=viewtopic&topic_id=136075&page=1

http://www.armorama.com/modules.php?op=modload&name=SquawkBox&file=index&req=viewtopic&topic_id=192836&page=1

http://www.armorama.com/modules.php?op=modload&name=features&file=view&artid=2229

https://www.armorama.com/modules.php?op=modload&name=SquawkBox&file=index&req=viewtopic&topic_id=258617&ord=1&page=1
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 12:52 AM UTC

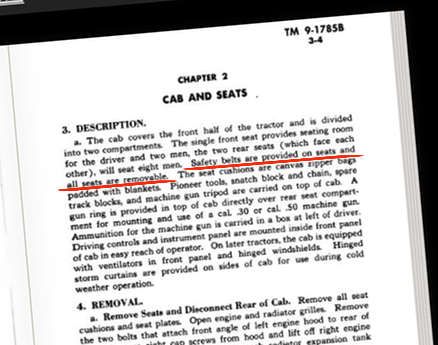

Those "seat cushions" were actually just flat canvas zippered bags filled with either straw, sisal or folded blankets. They were really an irregular looking affair.



I felt I needed to at least rough up and divide those broad, super smooth, unrealistic seats provided in the HobbyBoss kit.

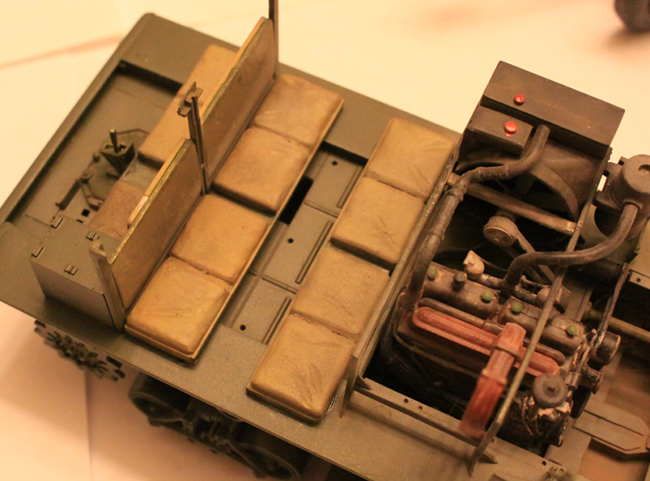

Above is my take on the seats but in this photo they are still awaiting the application of the etch seatbelts that every HST was supposedly equipped with.

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 01:11 AM UTC

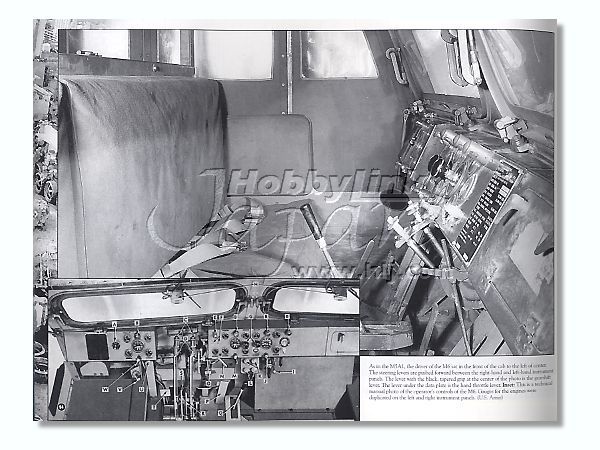

Top photo from HobbyLink/Doyle/MMiR found on line - used here for discussion purposes ONLY.
It appears the backs of the seat cushions just MIGHT have been smooth black leather.

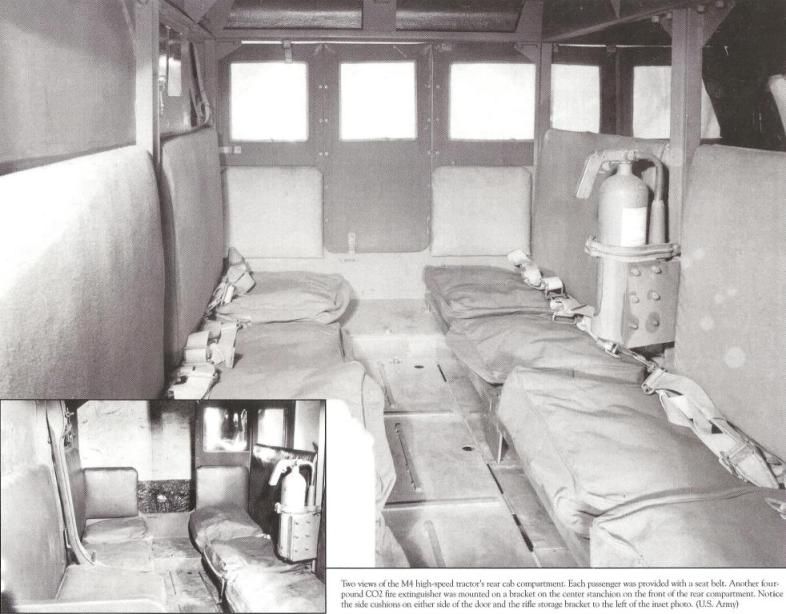

I think this middle photo came from the Doyle MMiR book as well.
In this photo the seat backs appear to be CANVAS.
Note the crumpled condition of the seat bottoms.
Again photo reproduced here for discussion purposes ONLY.

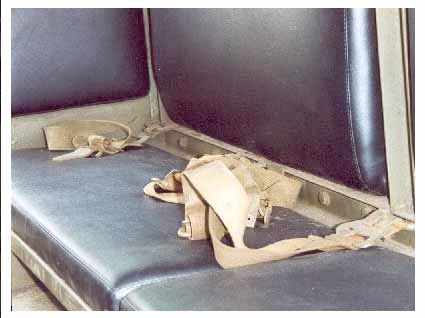

There are photos out there of an M4 that show the seats to be ALL black leather. However I believe those images to be of a restored museum vehicle as seen below and may not be accurate.

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 01:26 AM UTC
Thanks to Mr. Hitriak it appears the original seat backs were canvas as well! Thank you Sir!

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 01:56 AM UTC
Dan, one more image you may be interested in:

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 01:59 AM UTC
Just slightly off topic

But the cab interior is not the only place to add vehicle detail!


Above photo by Brian Culbertson

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 02:01 AM UTC
I did a little detailing work in other areas:





165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 02:06 AM UTC

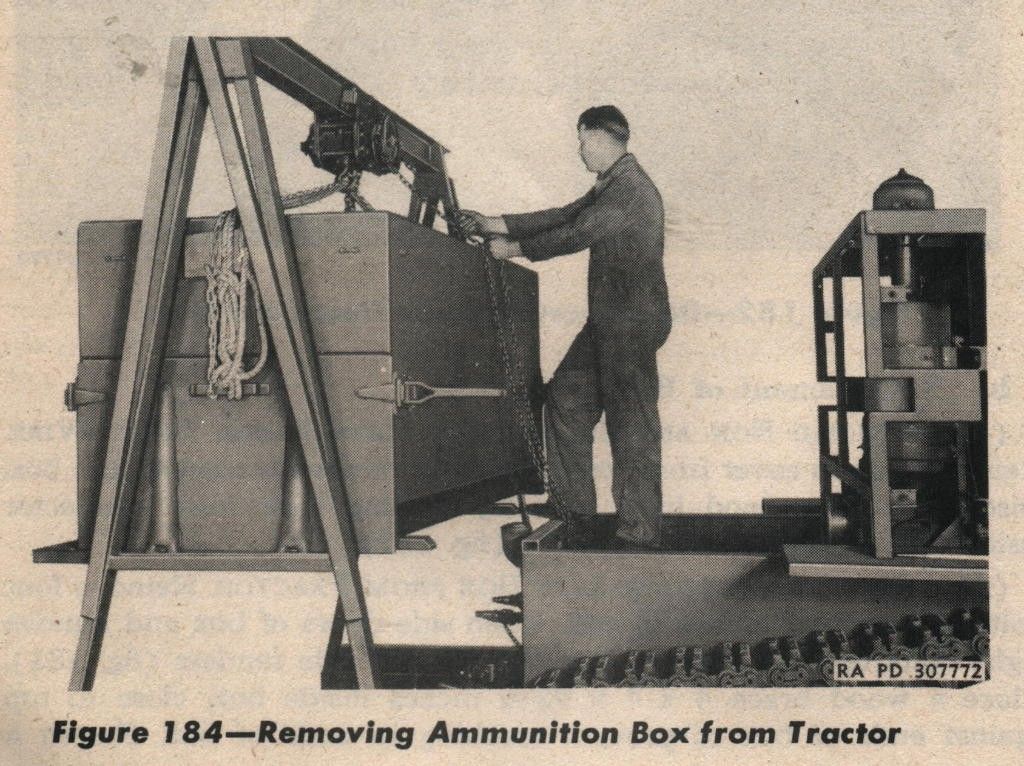

I plan on doing a vehicle maintenance dio and scratch building a chain hoist to lift off the rear ammo enclosure in order to see all that beautiful added detail.


The above image comes from the collection of EASY 1 Productions - From the disc entitled "TM 9-785; 18-ton High Speed Tractor"

Follow them on Facebook at:


https://www.facebook.com/Easy1CD/
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 02:32 AM UTC
Eduard also offers several etched brass sets for the M4. One of which includes the nicely detailed seat belts.





raffrecon
Visit this Community
New York, United States
Joined: January 01, 2011
KitMaker: 256 posts
Armorama: 248 posts
Posted: Sunday, July 07, 2019 - 03:30 AM UTC
Awesome, thanks guys
petbat
Visit this Community
Queensland, Australia
Joined: August 06, 2005
KitMaker: 2,150 posts
Armorama: 2,044 posts
Posted: Sunday, July 07, 2019 - 08:03 PM UTC

Quoted Text

I did a little detailing work in other areas:




What do you call 'a moderate level of detail' then Mike??

Nice job there
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Sunday, July 07, 2019 - 08:56 PM UTC
Thanks Peter - I appreciate the comment.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Monday, July 08, 2019 - 05:39 PM UTC
An old hobby competition adage says; "He who has the best references wins!"

I can highly recommend the many Tech Manuals available from Easy 1 Productions. Great reference material at usually a much lower price than the reproduction (or original) paper Tech Manuals AND in a much smaller package!


(Mike Koenig Photo). This is an unsolicited endorsement: I have no business involvement in Easy 1 Productions.

Some of the images in this thread come from the collection of EASY 1 Productions - From the disc entitled "TM 9-785; 18 ton High Speed Tractor M4"

Follow them on Facebook at:


https://www.facebook.com/Easy1CD/
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Tuesday, July 09, 2019 - 02:39 AM UTC
In response to Dan's question elsewhere on this site I offer this info about the cloth top over the ammo locker. Note this resin cloth top for the ammo compartment, it WAS available from "Scale-Link' in the UK unfortunately they may now be out of business:

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Tuesday, July 09, 2019 - 02:42 AM UTC
Not exactly sure if the crane arm could also be covered by this same canvas top OR if there were a separate cover for the boom. Hard to tell in this photo.

Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 12,042 posts
Armorama: 11,837 posts
Posted: Wednesday, July 10, 2019 - 10:24 PM UTC
Looks like the resin canvas cover (made by Masters Production) is still available from Scale Link (but hurry up ! ) :

https://www.scalelink.co.uk/acatalog/Masters_Productions_1_35_scale___WW2.html

H.P.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 8,652 posts
Armorama: 8,035 posts
Posted: Thursday, July 11, 2019 - 04:56 AM UTC
I tried searching for Scale-Link on line with no success. Thought they might be out of business. Sorry.

Yes, better hurry, only 2 left in stock!
