Although I can't find any reference images to confirm this, I understand that the IDF used the early M109 (short barrelled version) in 1973. If this is correct, would either of Revell's 1/72-scale kits (refs. 03265 or 03305) be suitable for a simple conversion?
junglejim
Visit this Community
Alberta, Canada
Joined: February 18, 2003
KitMaker: 1,705 posts
Armorama: 1,607 posts
Posted: Monday, April 22, 2019 - 11:45 AM UTC
Looks like an early short barrel and bore evacuator, but muzzle brake is different.




Jim
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 12,218 posts
Armorama: 12,008 posts
Posted: Monday, April 22, 2019 - 05:57 PM UTC
The original muzzle brake can be seen as well, in earlier pics. Maybe some M109's from the first batch were used in 1973... :












H.P.
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,135 posts
Armorama: 2,063 posts
Posted: Monday, April 22, 2019 - 07:29 PM UTC

Quoted Text

Although I can't find any reference images to confirm this, I understand that the IDF used the early M109 (short barrelled version) in 1973.



The IDF ordered 24 M109s from the first production series equipped with the M126 (caliber 23) gun in '69, received them in '70. All but one participated in the Yom Kippur War. At the beginning both units equipped with M109s fought against the Syrians on the Golan Heights; at later stages one of them was transferred to the Egyptian front in the Sinai Peninsula.

Another batch of 36 arrived right after the war, possibly also from the first production series.
GTDeath13
Visit this Community
Attica, Greece / Ελλάδα
Joined: June 12, 2015
KitMaker: 806 posts
Armorama: 804 posts
Posted: Monday, April 22, 2019 - 09:07 PM UTC

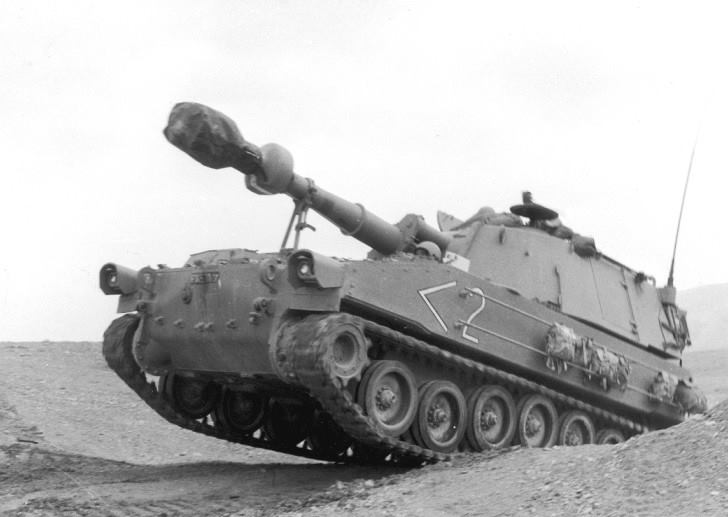

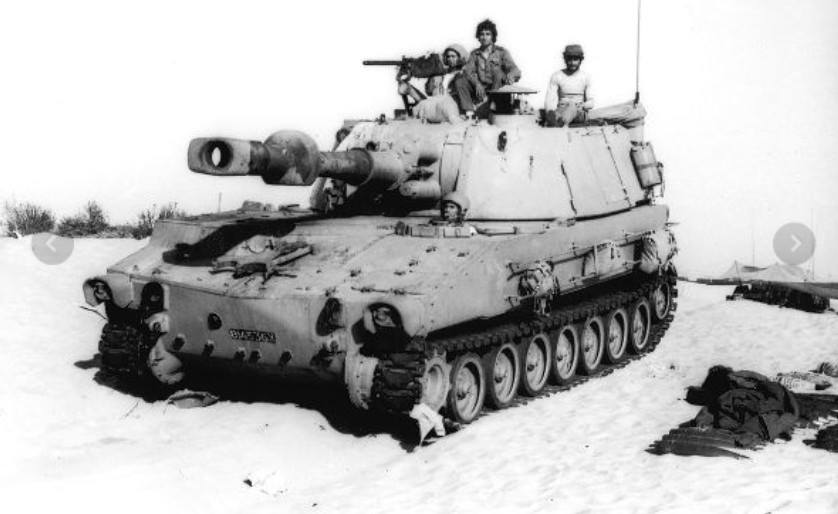

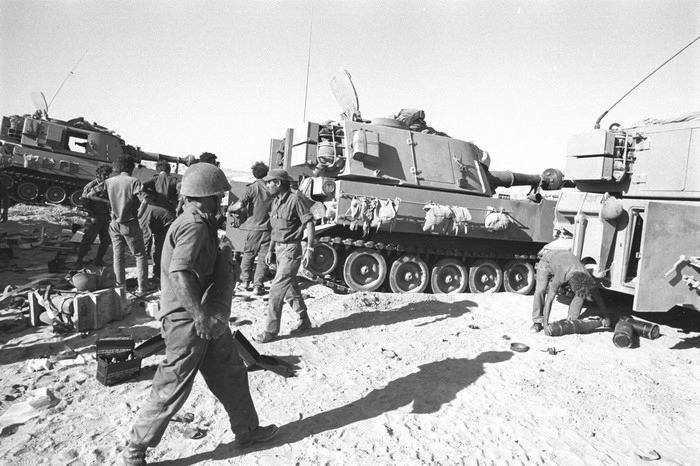

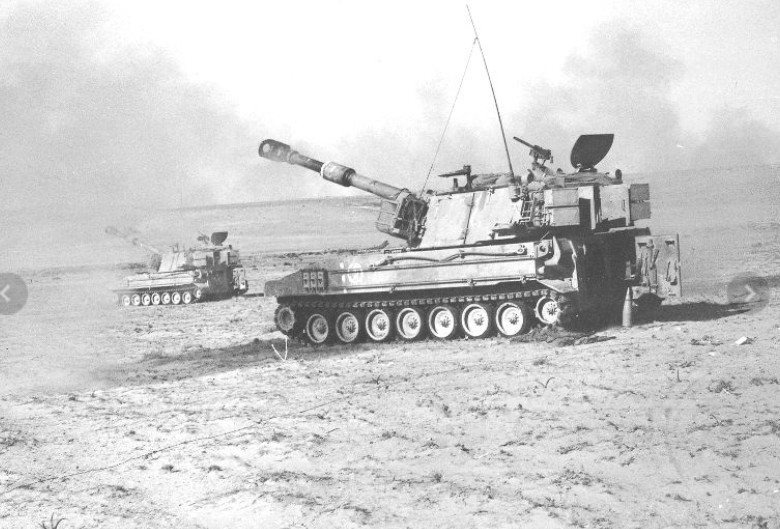

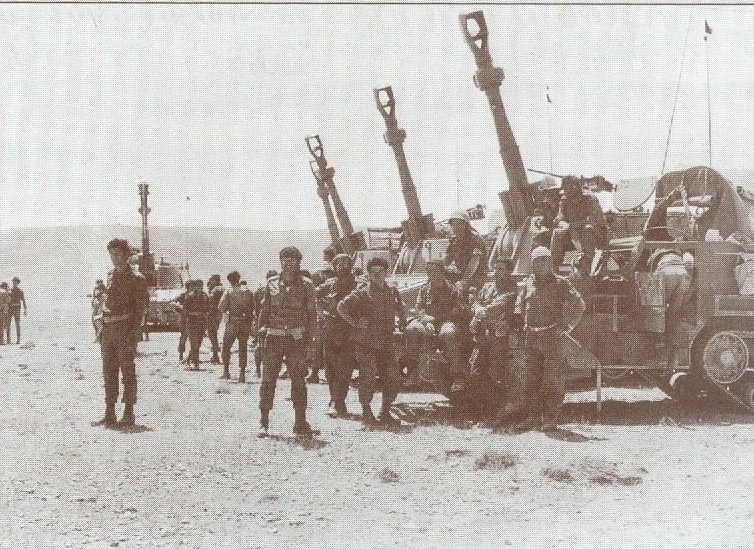

Some more photos:













Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 12,218 posts
Armorama: 12,008 posts
Posted: Tuesday, April 23, 2019 - 02:10 AM UTC

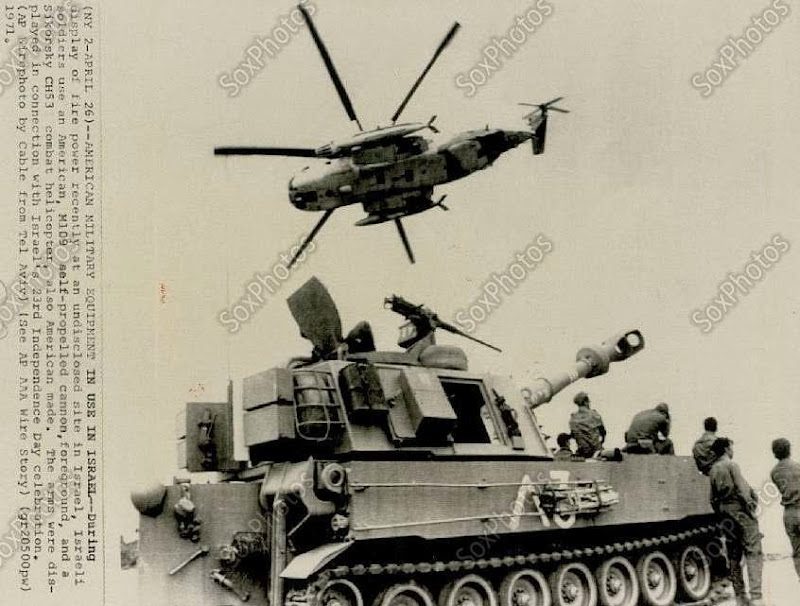

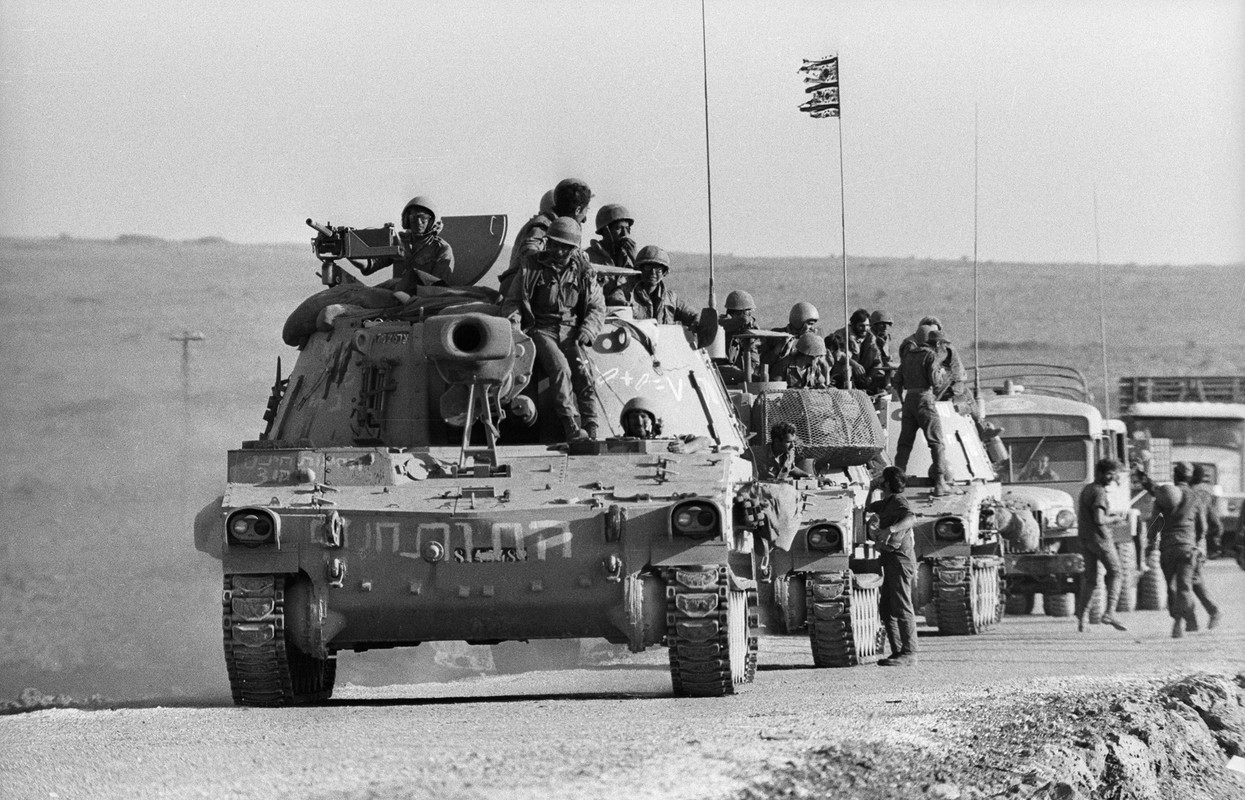

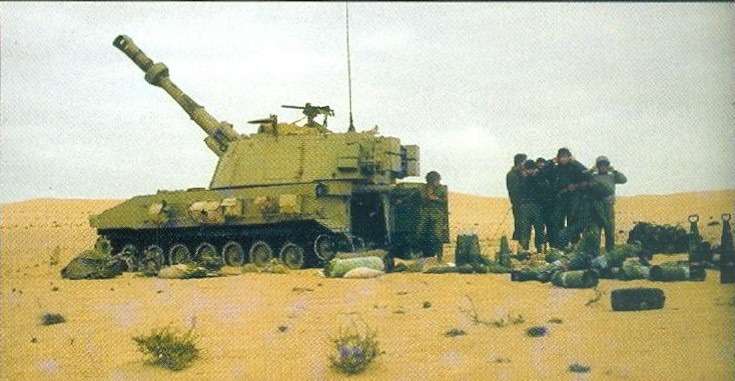

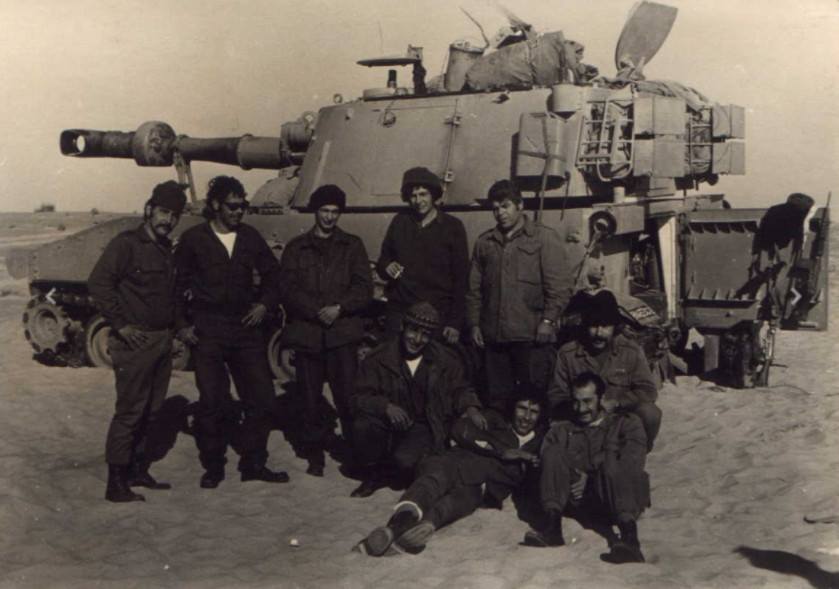

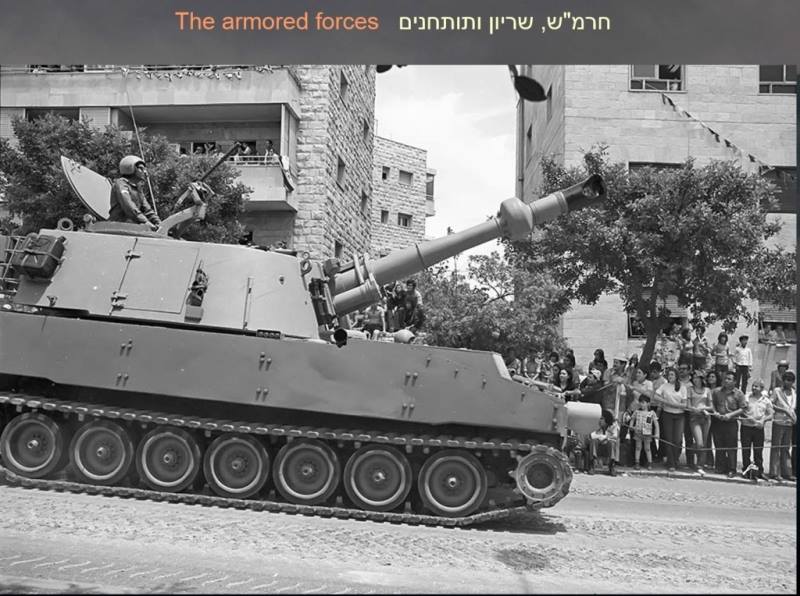

3 more (undated...) :







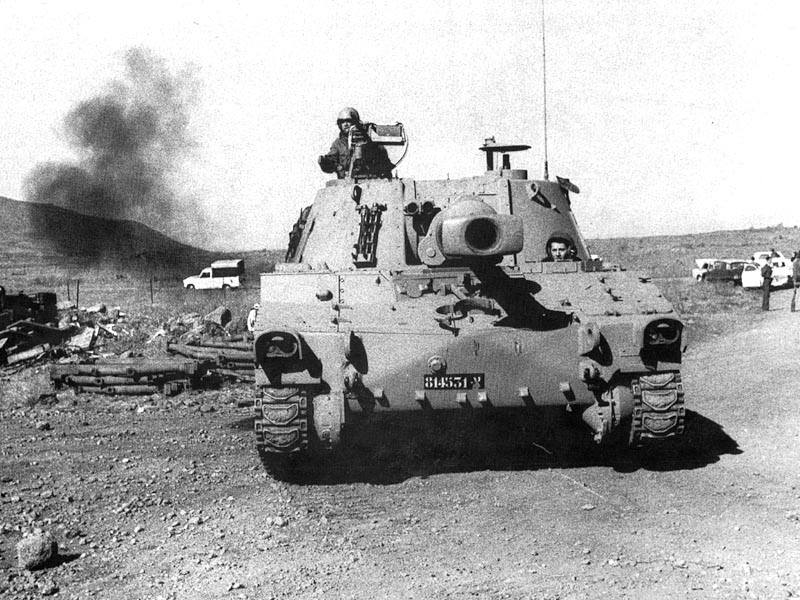

+ 1 (1971) :



H.P.
pbennett
Visit this Community
United Kingdom
Joined: October 14, 2007
KitMaker: 385 posts
Armorama: 340 posts
Posted: Tuesday, April 23, 2019 - 08:48 AM UTC
Excellent! That's certainly on my list of projects ... along with lots of others.
afvaficionado
Visit this Community
New Zealand
Joined: February 16, 2010
KitMaker: 137 posts
Armorama: 136 posts
Posted: Tuesday, April 23, 2019 - 10:19 AM UTC
Does anyone know why the Fume/Bore evacuator is shaped like that (short & fat)rather than the long & lean configuration usually seen on tanks? Is it due to relatively short barrel?

Mal
mertox
Visit this Community
Alabama, United States
Joined: April 15, 2019
KitMaker: 17 posts
Armorama: 17 posts
Posted: Tuesday, April 23, 2019 - 10:42 AM UTC
They used the long barrel version also. Check out the Doher and the Rochev. http://www.army-guide.com/eng/product3305.html
afvaficionado
Visit this Community
New Zealand
Joined: February 16, 2010
KitMaker: 137 posts
Armorama: 136 posts
Posted: Tuesday, April 23, 2019 - 12:07 PM UTC
Hi Bo
You mean the 39 calibre 155mm barrel? Yes that has the long & lean Fume/Bore evacuator, and does suggest that the configuration may be due to barrel length.
Do any of our Red Leg (Arty) members have a definitive answer?

Thanks
Mal
