Building Italeris 1/35 M.T.M. 'Barchino'
warreni
Visit this Community
South Australia, Australia
Joined: August 14, 2007
KitMaker: 5,924 posts
Armorama: 710 posts
Posted: Sunday, December 23, 2018 - 07:50 AM UTC
Hello all.

Well now that the Gearing is finished I was wondering what to build. I went out to the shed and looked around and noticed that the reference book for the MTM Barchino had come out of its box and was mixed up with some other things. Luckily the PE fret had become wedged in the book. Now we all know Italeri boxes are about as strong as a wet paper bag so I grabbed the horribly boxed kit and took a walk to the hobby cave inserting the book as I went.

And here it is!

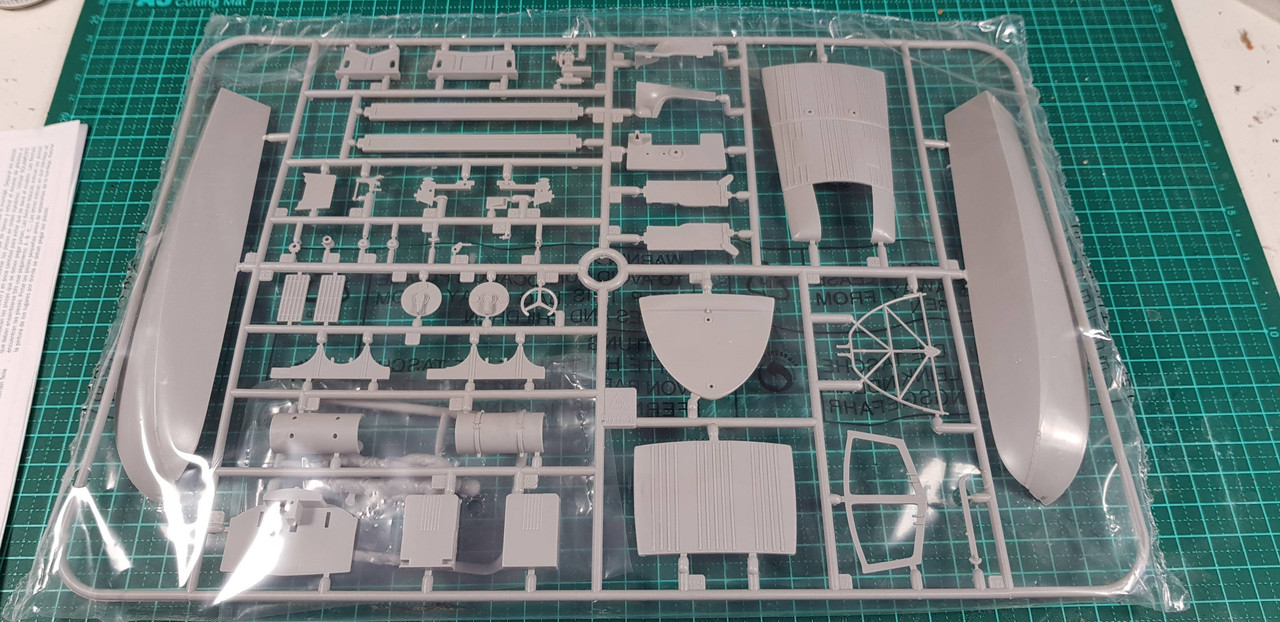

One sprue..

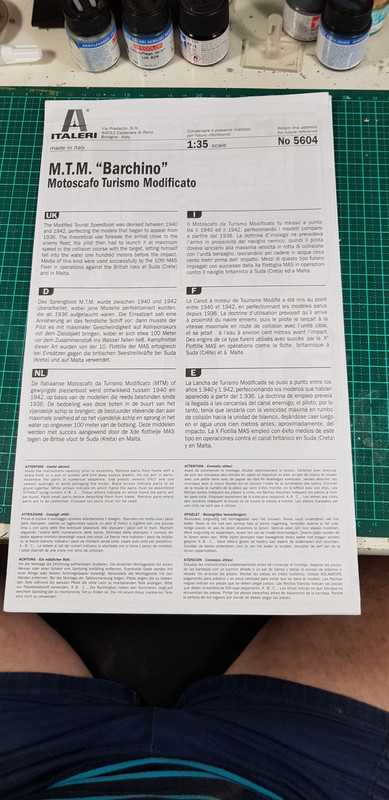

One instruction sheet..



One reference book, one PE fret and one decal sheet..

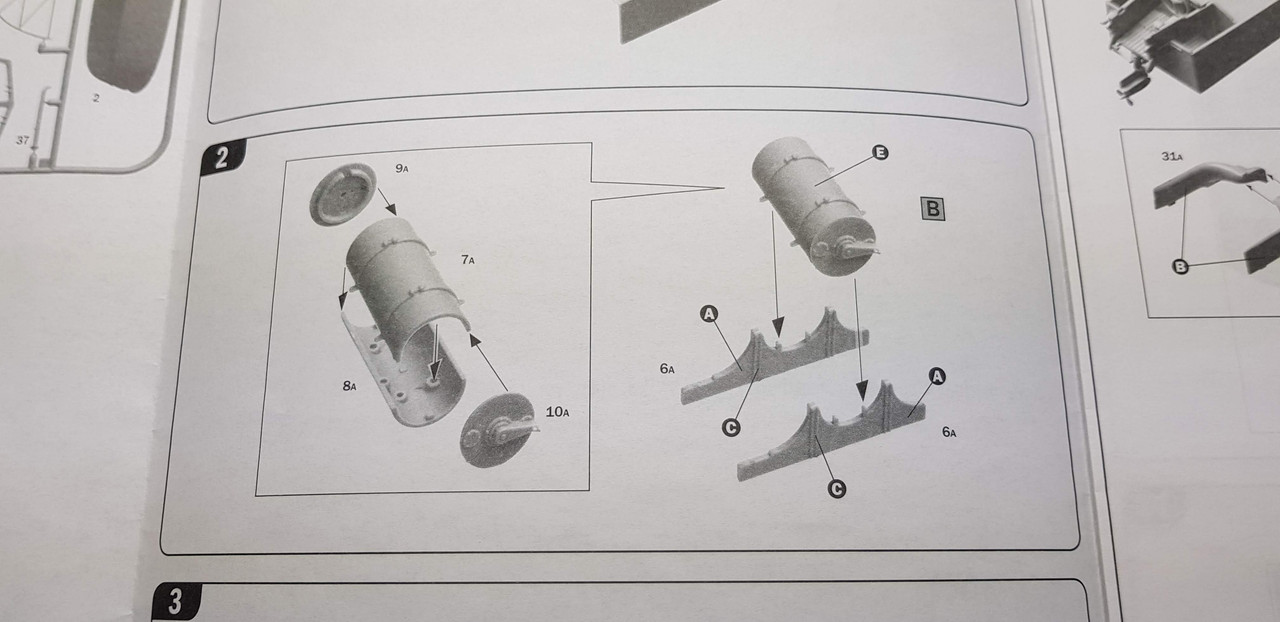

That's it! No 15 sheets of PE or vast hull mouldings here.. Just one sprue halding all the bits you need to build a Barchino, basically a big bomb in a small boat with a nutter sitting up that back that bailed after setting the boat on a collision course with the target. They were quit successful and sank some big ships. Now the instructions are not your normal Italeri line drawings but shaded 3D type one..

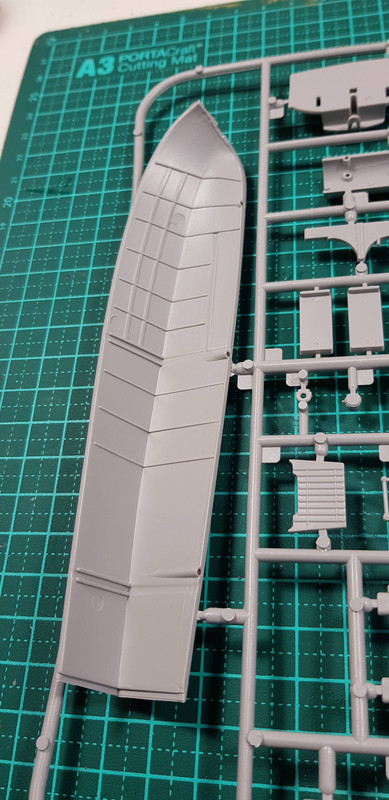

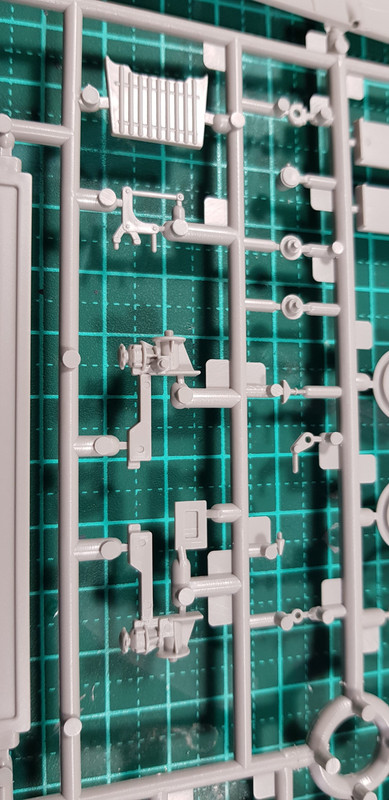

Clear enough I suppose but no one seems to be able to match Trumpeter and Eduard in clear instructions. A couple of shots of the sprue..

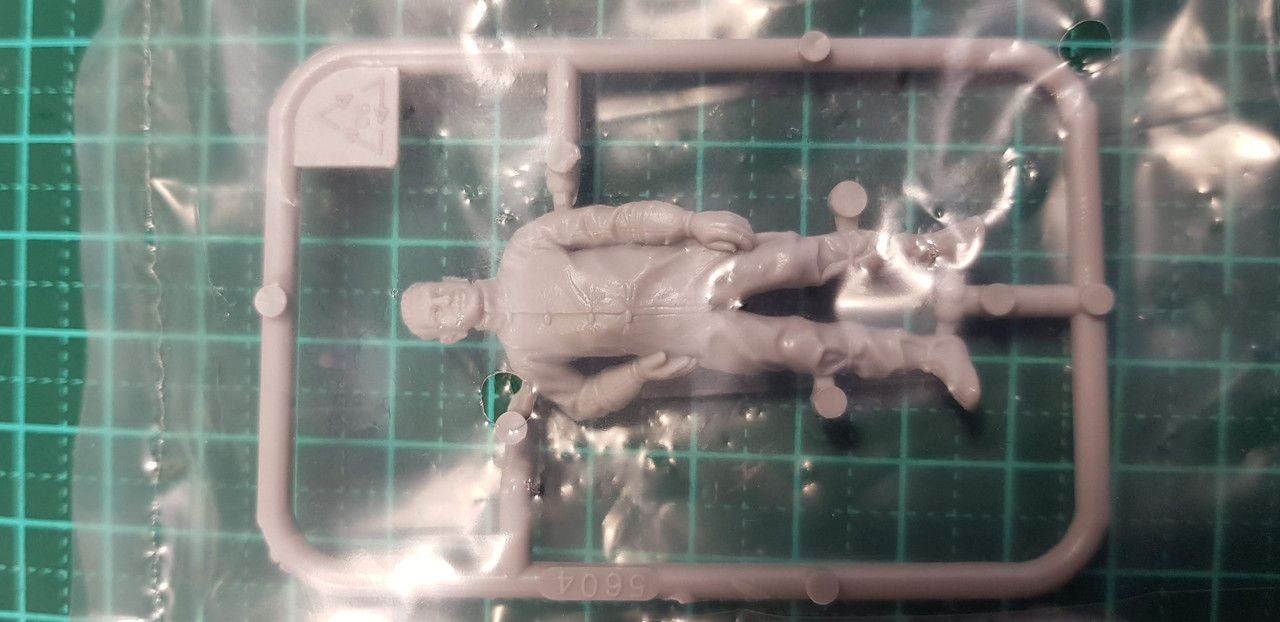

Nice and crisp but with a hint of flash here and there. It also comes with a figure of one of the loony pilots..



I don't like figures so he can stay in his plastic bag for the moment.

11 am and I cut the first hull half from the sprue.

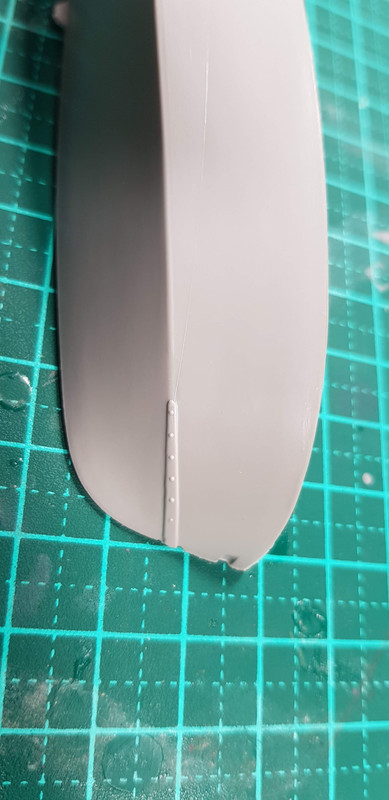

And then glueing them together.

Not the best fit in the world but a little brute-force and a mix of glues and Bob's your Uncle (which he is!)..

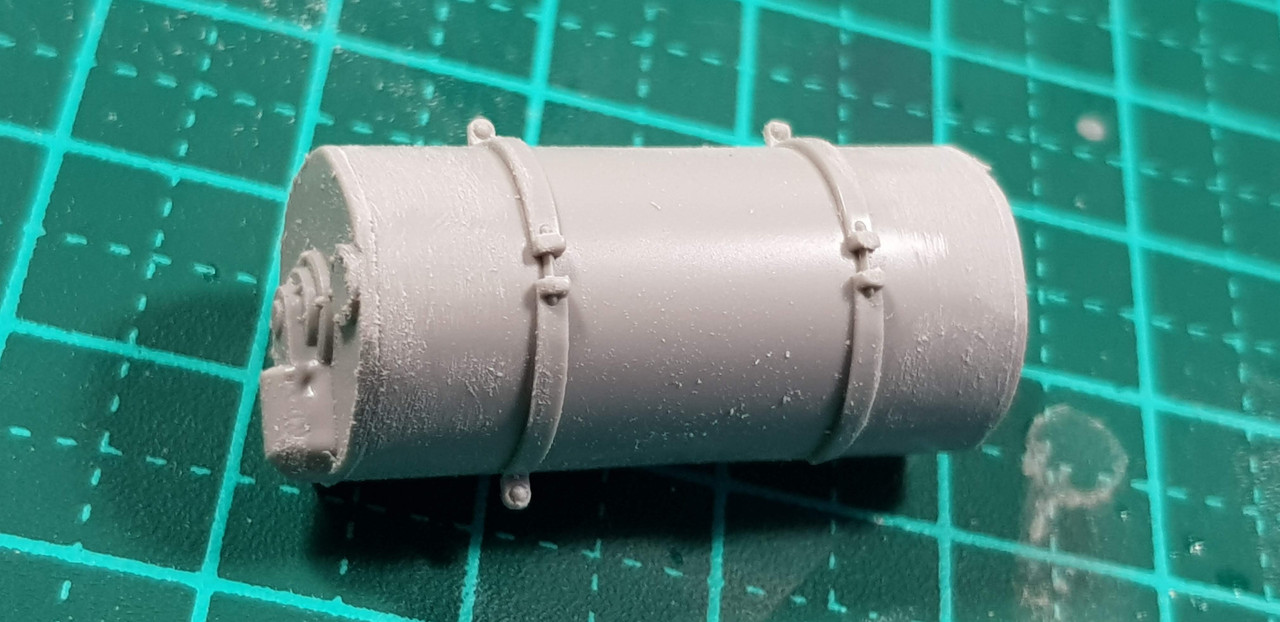

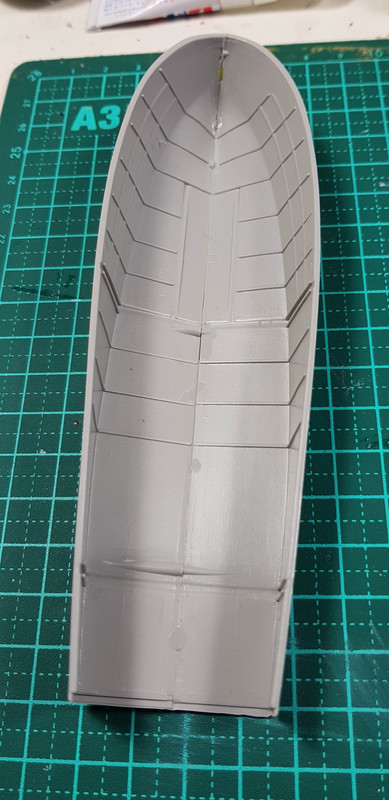

A little interior detail which you probably will never see once you finish the build. The second step had you gluing the bomba together, two halves and two ends..

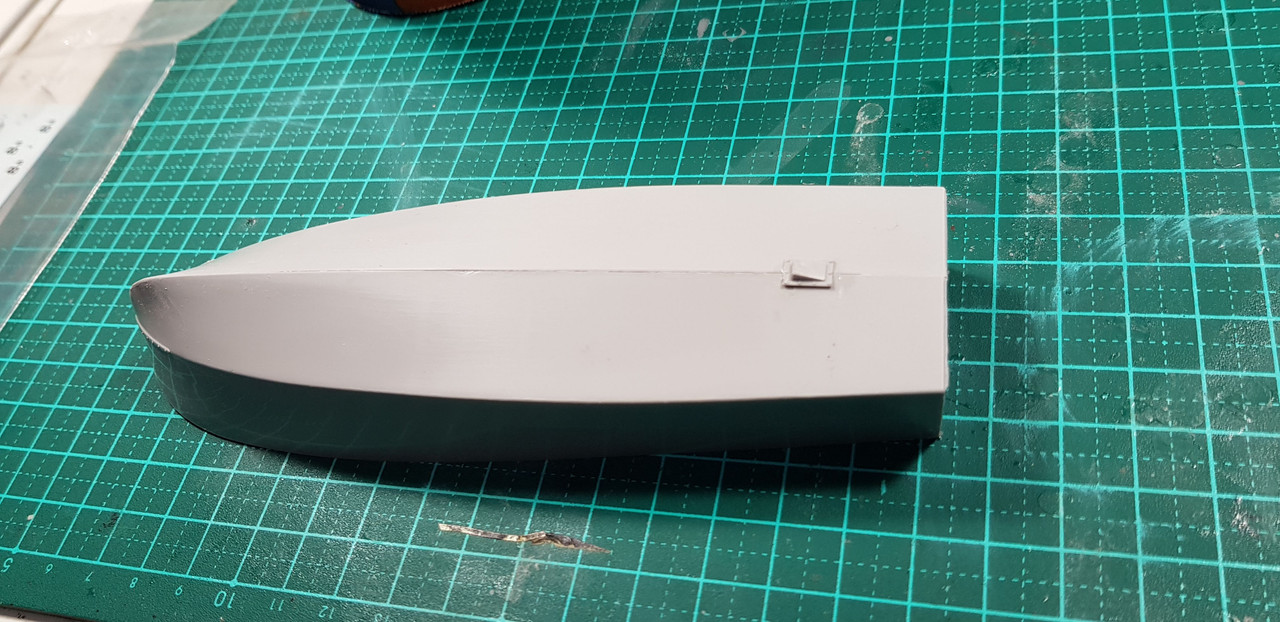

Next was sanding the bottom of the hull after filling some small gaps with super glue then attaching what looks like a small scoop..



Then I painted the interior of the hull..

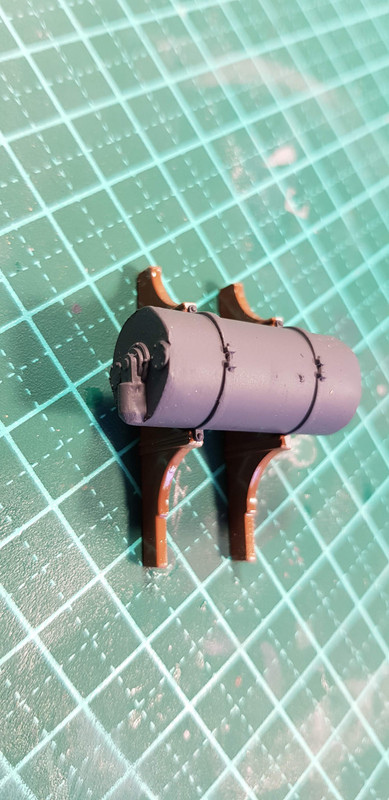

Mounted il bomba in its cradle..

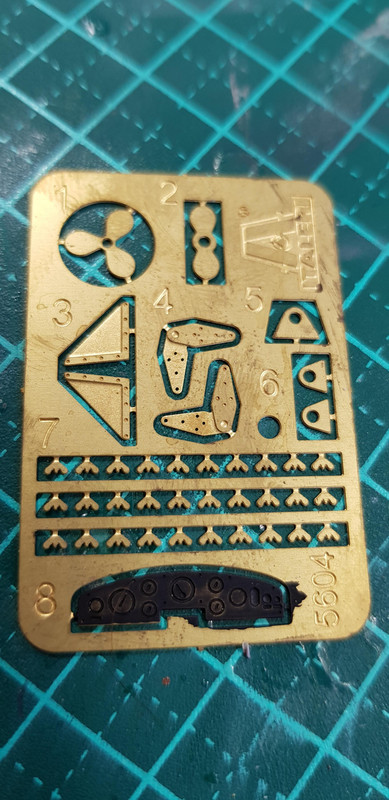

Painted the dashboard on the PE fret..



Then I painted the floor boards grey an added some black wash to simulate the gaps between the slats..



And finally, for today I installed the frame for the hull..



Apart from painting the steering wheel that is as far as I got in a few hours. A refreshing change from how log it would have taken to glue together one 20mm Pom Pom in a 1/200 ship.

I can feel my sanity returning!

Cheers
Warren

d6mst0
#453
Visit this Community
Texas, United States
Joined: August 28, 2016
KitMaker: 1,650 posts
Armorama: 587 posts
Posted: Sunday, December 23, 2018 - 10:22 AM UTC
Warren,

Nice choice. Only one sprue, be careful it maybe a trap by Italeri, giving you a false sense of a quick build...LOL. I haven't see an kit yet that didn't require a lot of filler.

Mark
warreni
Visit this Community
South Australia, Australia
Joined: August 14, 2007
KitMaker: 5,924 posts
Armorama: 710 posts
Posted: Sunday, December 23, 2018 - 10:00 PM UTC

Quoted Text

Warren,

Nice choice. Only one sprue, be careful it maybe a trap by Italeri, giving you a false sense of a quick build...LOL. I haven't see an kit yet that didn't require a lot of filler.

Mark



This one is an exception Mark. I few pin marks and very little else so far.

And it is getting close to finished my friends.

First up the boars were installed in the back of the boat.



The power transmission system then got a few sink marks filled with CA glue..



then after filling..



All gone!

Next up the bomb was installed..



Then the wheel house..



Then the decking..



After that I dried I installed the frame on the bow,,,



Next I found a couple of massive sink holes in some tiny parts..



Which I filled and sanded flat..



They then got installed on the deck..



Then I glued together the protective wrap around fairing for the pilot..



I then glued together the floating thingy the pilot laid on after bailing out of the boat.. at 30 knots.. in enemy waters..surrounded by bitey things..



I painted the hull etc Light Ghost Grey previously then masked up ready for the matt black tomorrow.





You may notice that I painted the transom by brush ear;ier as it was going to be a bit of an arse to mask up to spray. Will just cover the whole transom in the morning.

Should be finished tomorrow!

Cheers
Warren

warreni
Visit this Community
South Australia, Australia
Joined: August 14, 2007
KitMaker: 5,924 posts
Armorama: 710 posts
Posted: Monday, December 24, 2018 - 05:56 PM UTC
Finished...









Great action painting, but the hull is the wrong colour below the water-line! DOH!

Merry Christmas
Warren
RedDuster
Visit this Community
England - South East, United Kingdom
Joined: March 01, 2010
KitMaker: 6,817 posts
Armorama: 248 posts
Posted: Wednesday, December 26, 2018 - 08:45 PM UTC
Very nice job Warren,

That has to be the quickest build I have seen.

Cheers

Si
