ships' hull plating in 1/350
feuerwehr42
Visit this Community
Oregon, United States
Joined: May 08, 2010
KitMaker: 27 posts
Armorama: 3 posts
Posted: Wednesday, March 21, 2018 - 06:26 AM UTC
I'm scratchbuilding a model of the German commerce raider "Pinguin" in 1/350...the photos I've seen of her and other ships of her kind show the lateral strips of plating running along the sides of the hull quite prominently. Would using very thin (like .005") strips of styrene along the hull realistically replicate this feature?
TimReynaga
Staff MemberAssociate Editor
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 2,102 posts
Armorama: 269 posts
Posted: Wednesday, March 21, 2018 - 06:45 AM UTC
Hi Doug,

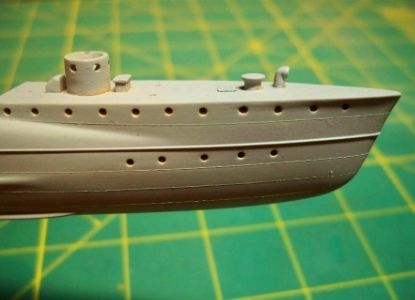

Yes, thin plastic strips could do the job, but it is a lot of work and the effect would be heavy, even using super thin .005" strips. A method I've had good results using in 1/350 and smaller scales is to use strips of masking tape; just prime the hull, then apply the strips and spray a couple more of coats over them. Removing the tape leaves subtle but sharp bands of thicker paint that suggest hull plating.
 photo Decaturhullplatingfwdstbd_zpsc864e9db.jpg
Biggles2
Visit this Community
Quebec, Canada
Joined: January 01, 2004
KitMaker: 7,239 posts
Armorama: 5,831 posts
Posted: Wednesday, March 21, 2018 - 07:52 PM UTC
Do you leave a hair-line gap between tape strips so the raised line forms?
d6mst0
#453
Visit this Community
Texas, United States
Joined: August 28, 2016
KitMaker: 1,623 posts
Armorama: 584 posts
Posted: Wednesday, March 21, 2018 - 10:10 PM UTC

Quoted Text

I'm scratchbuilding a model of the German commerce raider "Pinguin" in 1/350...the photos I've seen of her and other ships of her kind show the lateral strips of plating running along the sides of the hull quite prominently. Would using very thin (like .005") strips of styrene along the hull realistically replicate this feature?



I seen a you-tube video by a guy name Harry Houdini that used finger nail tape. The results were quite impressive. Check out his video.
TimReynaga
Staff MemberAssociate Editor
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 2,102 posts
Armorama: 269 posts
Posted: Thursday, March 22, 2018 - 12:27 AM UTC

Quoted Text

Do you leave a hair-line gap between tape strips so the raised line forms?

 photo Decaturhullplatingfwdstbd_zpsc864e9db.jpg

It looks like that in the picture, but no. There is a bit of paint buildup at the tape edges, so when the tape is removed small ridges are left at the edges of the bands that look like weld lines. A happy accidental byproduct of the process!

The trick is to tape over only half of the plated areas; the exposed parts will be the plates that stand proud after the second and third coats of primer. In the example above, only three bands of tape were applied over the initial primer coat.

Here's how this banding effect looks under the final camouflage paint in 1/700:

Tojo72
Visit this Community
North Carolina, United States
Joined: June 06, 2006
KitMaker: 4,570 posts
Armorama: 3,422 posts
Posted: Thursday, March 22, 2018 - 12:52 AM UTC
Would really love to the some progress pics when you get to that point
Cosimodo
#335
Visit this Community
Auckland, New Zealand
Joined: September 03, 2013
KitMaker: 1,441 posts
Armorama: 36 posts
Posted: Thursday, March 22, 2018 - 03:46 AM UTC
I use Tim's method with a slight variation. Instead of spraying paint I use very fine lines of white and black oil paints along the tape. Cut the tape to the width of the panels you want to create. White for the top of the plating and black below. The good thing with oils they are easy to manage. They will just wipe off if you think it's not right or over done. To the eye it creates that perception that there is a change in level on the hull. It's quite subtle.


cheers
Michael
feuerwehr42
Visit this Community
Oregon, United States
Joined: May 08, 2010
KitMaker: 27 posts
Armorama: 3 posts
Posted: Thursday, March 22, 2018 - 08:34 AM UTC
Michael, thanks for the tips...could you elaborate a bit, as I'm not quite sure how to put your method into practice. (I'm old and easily confused.)
B_Ernie
#266
Visit this Community
Queensland, Australia
Joined: October 14, 2012
KitMaker: 50 posts
Armorama: 20 posts
Posted: Thursday, March 22, 2018 - 03:43 PM UTC

Quoted Text

I seen a you-tube video by a guy name Harry Houdini that used finger nail tape. The results were quite impressive. Check out his video.



This is the video, it's quite effective.
https://youtu.be/mVJXZPGrw7Y
rolltide31
#377
Visit this Community
Texas, United States
Joined: June 27, 2010
KitMaker: 1,457 posts
Armorama: 93 posts
Posted: Thursday, March 22, 2018 - 09:49 PM UTC
Michael,

Do you thin the oil paint and allow capillary action to move it along the tape line or do you straight paint the difference colors?

Also how do you address the vertical plate lines since the hull plated are not a solid plank the full length of the ship?

thanks

Dave
d6mst0
#453
Visit this Community
Texas, United States
Joined: August 28, 2016
KitMaker: 1,623 posts
Armorama: 584 posts
Posted: Friday, March 23, 2018 - 05:56 AM UTC

Quoted Text


Quoted Text

I seen a you-tube video by a guy name Harry Houdini that used finger nail tape. The results were quite impressive. Check out his video.



This is the video, it's quite effective.
https://youtu.be/mVJXZPGrw7Y



Yea that is the one.
