Meng D9r with slat armour
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Friday, October 14, 2016 - 11:24 PM UTC
While I'm waiting for bits for Achzarit and Nagmachon and to get the enthusiasm back for the Merkava's, here's something else for your delectation















the tracks look far too loose to me even though they have the recommended 43 links. Having said that they do go together very well.

Pete
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,135 posts
Armorama: 2,063 posts
Posted: Friday, October 14, 2016 - 11:35 PM UTC

Quoted Text

the tracks look far too loose to me even though they have the recommended 43 links.



They look quiet OK to me...



Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Friday, October 14, 2016 - 11:36 PM UTC
Thanks Israel, I just tried taking a link out and they don't fit so 43 links it is.

Pete
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,135 posts
Armorama: 2,063 posts
Posted: Friday, October 14, 2016 - 11:38 PM UTC

Quoted Text

Thanks Israel, I just tried taking a link out and they don't fit so 43 links it is.

Pete



Yeah, once it's on a base, it should look just fine...

Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Friday, October 14, 2016 - 11:40 PM UTC
I wish they'd put these tracks in the first kit. I wouldn't have needed to buy Friuls then.

Pete
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,135 posts
Armorama: 2,063 posts
Posted: Friday, October 14, 2016 - 11:48 PM UTC

Quoted Text

I wish they'd put these tracks in the first kit. I wouldn't have needed to buy Friuls then.

Pete



Good to know, since this beast is on my "still-to-do" list. I was gonna go for the one without the slat armor, but after what you said I'll get this one. It would make a nice companion to my "Nagamchon" which also has slat armor.
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Friday, October 14, 2016 - 11:51 PM UTC
Each link is 2 parts instead of 3 and they just click together.

Pete
Tankrider
Visit this Community
Oklahoma, United States
Joined: October 07, 2002
KitMaker: 1,249 posts
Armorama: 1,178 posts
Posted: Sunday, October 16, 2016 - 08:33 PM UTC
Dennis,
If you want to tighten up the track tension and are not opposed to some scratch building, you can make the idler adjustable with telescoping tubing and a saw. The basic concept is to cut the idler free, put one section of the tubing in the idler and the other in the track roller assembly. It is not too hard and allows you to adjust the "sag" in the tracks.

John
HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,044 posts
Armorama: 13,243 posts
Posted: Sunday, October 16, 2016 - 09:25 PM UTC

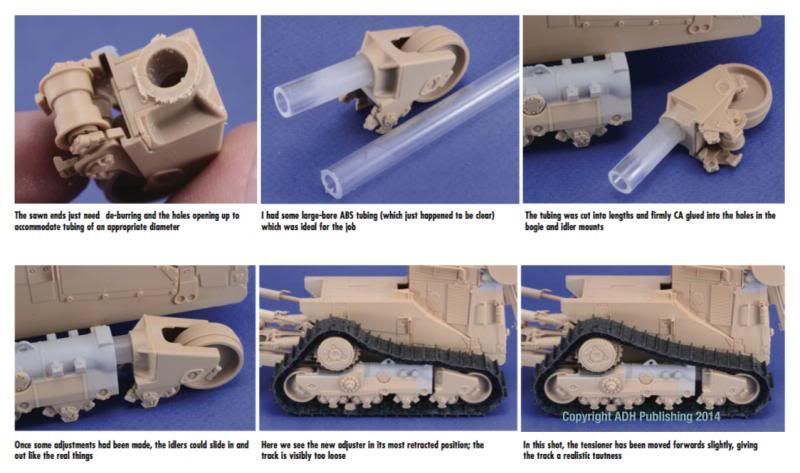

As John says, you can make the track tension adjustable pretty easily. Here is how Marcus Nicholls explained it over at Missing-Links on his build.

simonn
Visit this Community
Australia
Joined: October 15, 2016
KitMaker: 62 posts
Armorama: 18 posts
Posted: Monday, October 17, 2016 - 10:51 AM UTC
Thanks John/ Gino/ Marcus. That's a great tip for when I build this kit.

Simon
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Thursday, October 20, 2016 - 11:40 PM UTC
Thank you for the suggestions Guys, they're much appreciated.

Pete
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Wednesday, December 14, 2016 - 10:02 PM UTC
I had a look at a D6 recently, unfortunately in the dark, and the above method is how the track tensioning actually works.
I've laid my paws on some plastic tubing and while I'm off over Xmas will be having a crack at doing this.

Pete
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Saturday, December 24, 2016 - 12:54 AM UTC
Hi all

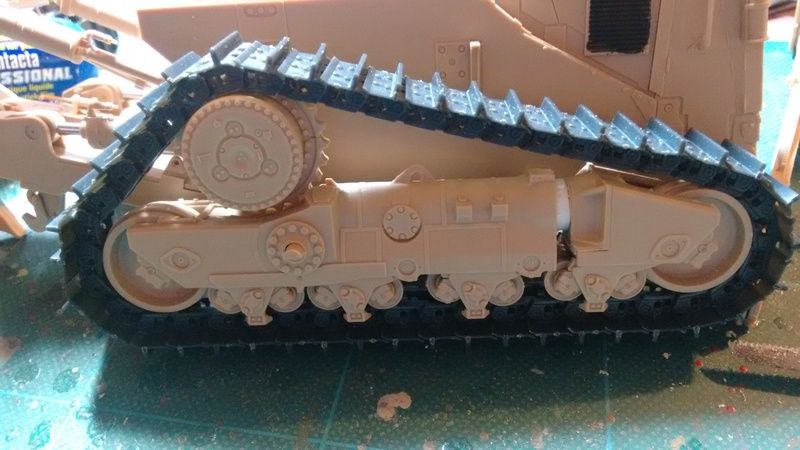

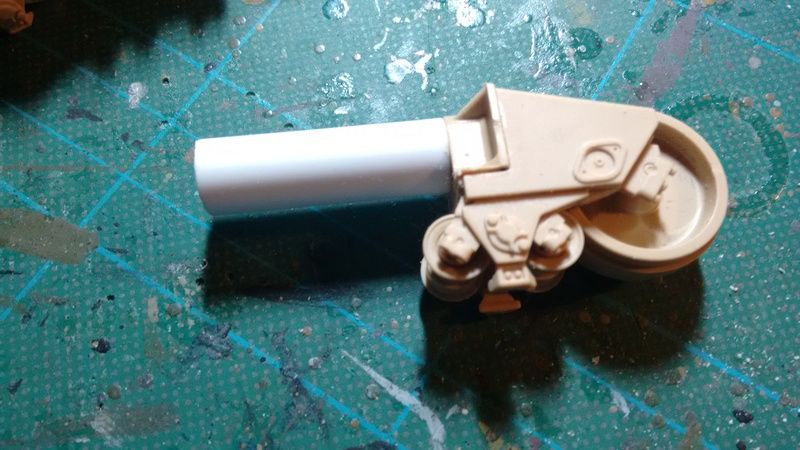

More progress on the Doobi. The tracks are too long with 43 links and look awful. Thanks to Gino and Marcus Nicholls I show you my version of the solution. First cut the idler and 1st pair of roadwheels from the chassis unit. file the end flat and glue on a piece of plastic tube,

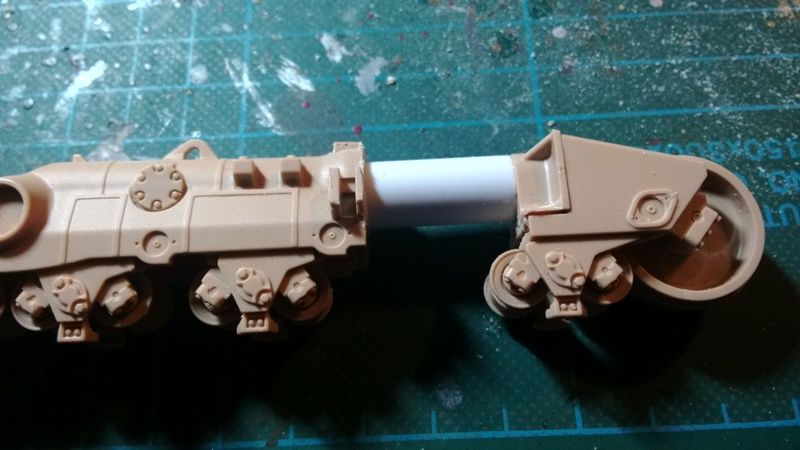

Then file out the hole in the main bit to take the plastic tube







Pete
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Sunday, December 25, 2016 - 08:57 PM UTC
Folks
More progress on the Doobi

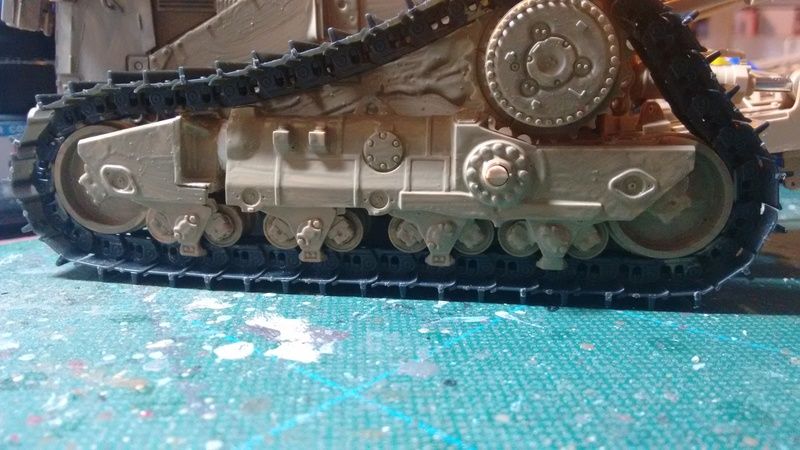

the newly tensioned tracks.

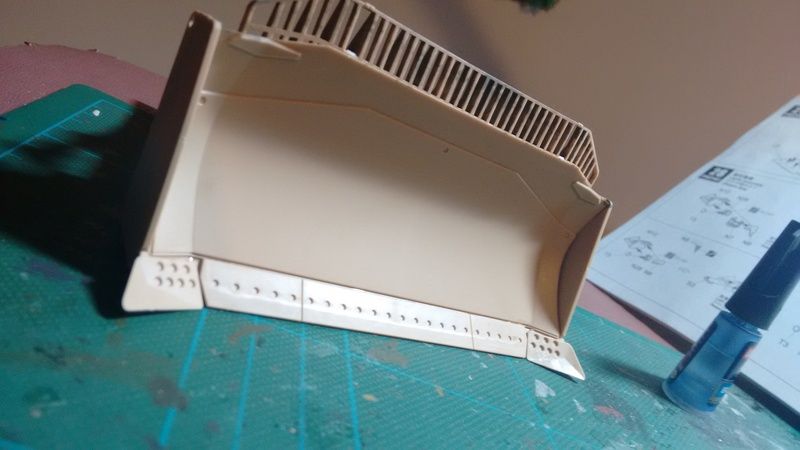

the blade



and the ripper

Pete
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Wednesday, December 28, 2016 - 12:06 AM UTC
A bit more progress on the Doobi








Pete
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Wednesday, December 28, 2016 - 08:53 PM UTC

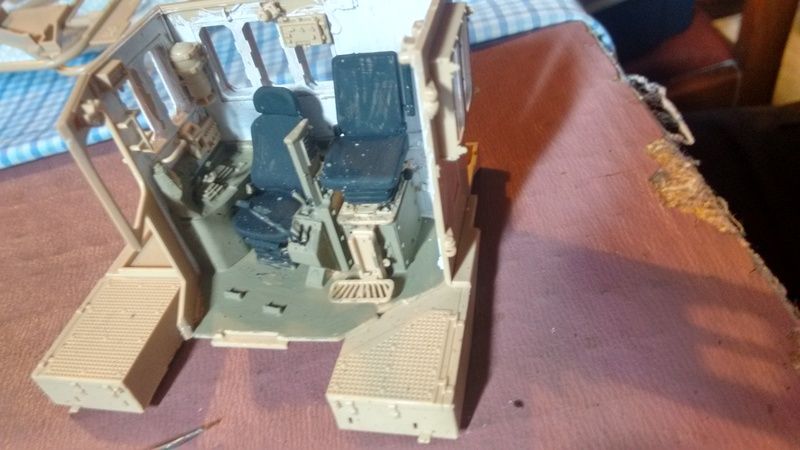

More on the Doobi



Back of cab



Side of cab



Test fitting the bar armour.

Pete
Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Friday, December 30, 2016 - 10:38 PM UTC

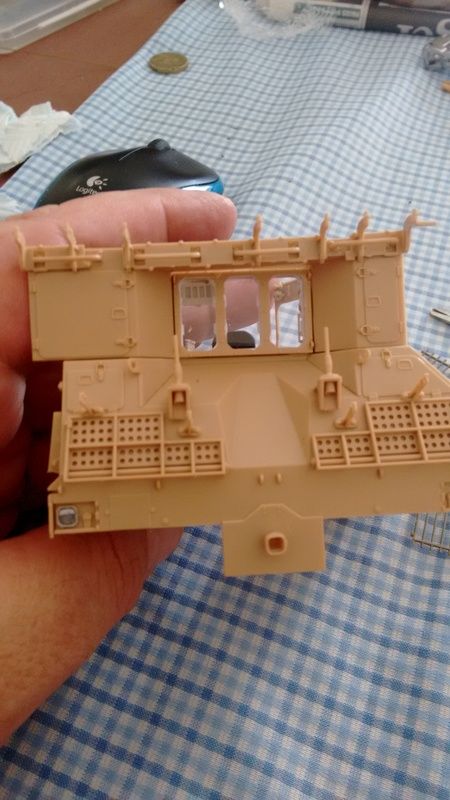

Here we have most of the mounting brackets for the bar armour fitted. It looks like a porcupine now. I've managed to break one of the brackets for the front armour.









Pete

Stormbringer
Visit this Community
England - South East, United Kingdom
Joined: January 20, 2002
KitMaker: 1,667 posts
Armorama: 1,116 posts
Posted: Saturday, December 31, 2016 - 01:58 PM UTC

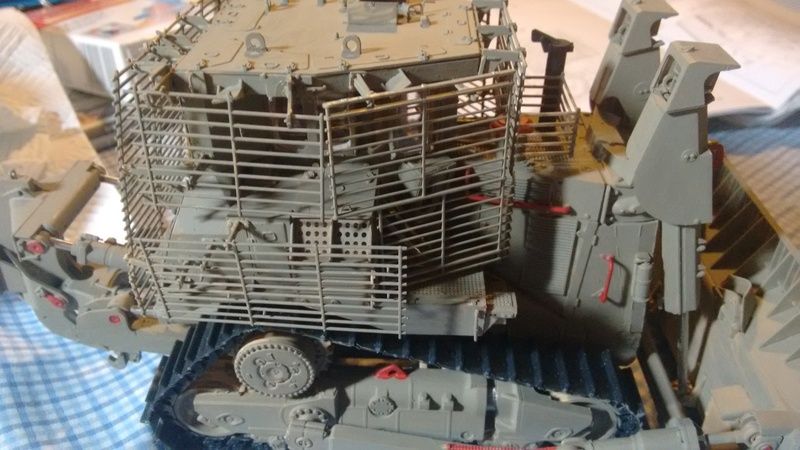

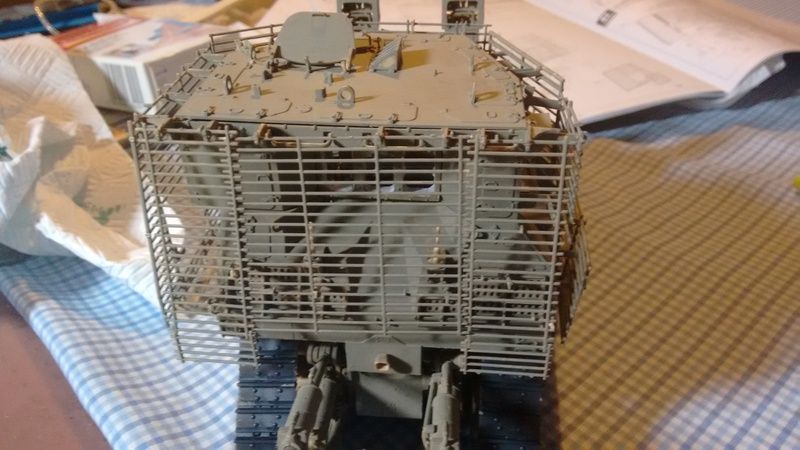

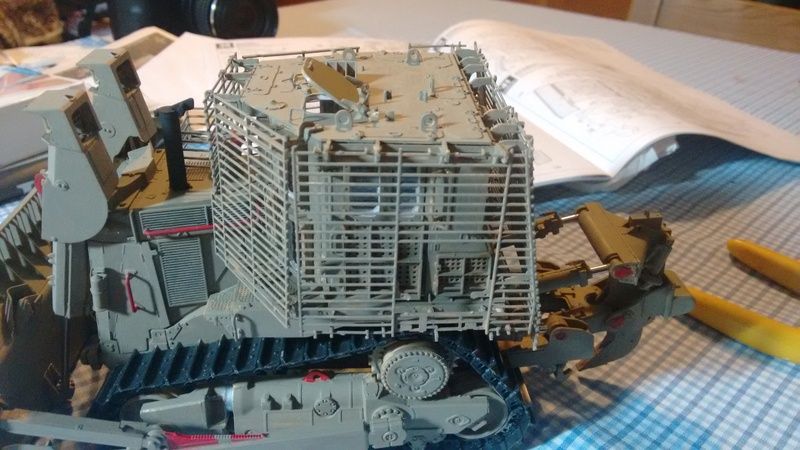

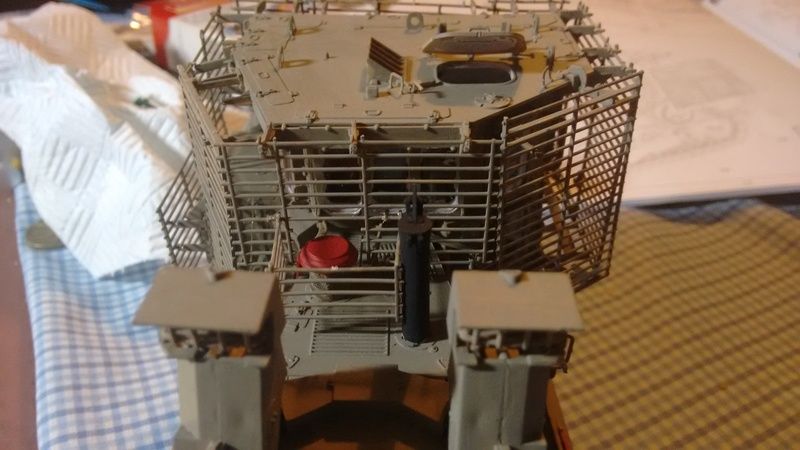

Test fitting of bar armour









maiinly detail painting left to do.

Pete
