Interesting/Odd IDF Heavy Metal
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Friday, February 03, 2017 - 07:30 PM UTC

Quoted Text

Great....thanks to this thread there a dozen new projects I want to embark on.

Reluctant Renegade or Kylie, any additional info on the Achzarit with the guardrail pics you posted on pages 2 and 3? Time frame, location etc.? It's an early version?

I'm about 90% finished with Meng's Achzarit Late and with Meng's guardrail set in the stash this would definitely make for something different.

Seriously though, thanks to all the contributors, this really is a great thread....even if it is going to make my wallet a bit lighter.



Thanks Sherb, I'm glad you like the thread. As a matter of fact, even me myself is surprised by the amount of interesting stuff I'm finding while browsing the net for more pictures.
As for the "Achzarit", it's equipped with the original T-55 roadwheels, so I believe it's an early version.
A few members of this forum approached me asking for more pictures of the guardrail/water canister equipped one, but unfortunately I don't have any. I'll upload them here as soon as I find some more. As for the time frame, the picture was taken in the summer of 2006, during the Second Lebanon War.
Cheers,
Israel
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Friday, February 03, 2017 - 08:09 PM UTC
Oh cr#$, dropped my lighter...



sherb
Visit this Community
New York, United States
Joined: August 25, 2004
KitMaker: 690 posts
Armorama: 328 posts
Posted: Friday, February 03, 2017 - 08:18 PM UTC
Thanks for the info. I'm amazed (and baffled) at the complexity of the family tree of some of these IDF vehicles. The number of conversions, updates and variations are overwhelming but make for some striking models.
GTDeath13
Visit this Community
Attica, Greece / Ελλάδα
Joined: June 12, 2015
KitMaker: 872 posts
Armorama: 870 posts
Posted: Sunday, February 05, 2017 - 02:09 AM UTC
Tiran tanks with ERA:




Urugay, I think, purchased some of them and you can search for photos of those tanks if you are interested in building a model.
knewton
Visit this Community
New Zealand
Joined: June 19, 2013
KitMaker: 1,092 posts
Armorama: 979 posts
Posted: Sunday, February 05, 2017 - 04:15 AM UTC
Hello Nikos,

thanks for adding to the thread, and great photos, too.

here's a couple I've found recently...

M113 with 30mm remote turret, and Spike NLOS



and, for you AAA freaks,



I'll look for some more if there is any interest...

corsutton
Visit this Community
Oklahoma, United States
Joined: June 17, 2005
KitMaker: 543 posts
Armorama: 510 posts
Posted: Sunday, February 05, 2017 - 04:46 AM UTC
Big fan of the M-163! I'll take any photos of Machbets you can find.
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Sunday, February 05, 2017 - 12:31 PM UTC
There you go...











gilbertsakr
Visit this Community
New York, United States
Joined: August 20, 2012
KitMaker: 238 posts
Armorama: 230 posts
Posted: Sunday, February 05, 2017 - 12:47 PM UTC
for some reason I cant see the images

can you please repost , please
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Sunday, February 05, 2017 - 12:53 PM UTC

Quoted Text

for some reason I cant see the images

can you please repost , please



Hmmm...they look OK on my screen. I post them the exact way I always do. Does anyone else have the same problem?

Scarred
Visit this Community
Washington, United States
Joined: March 11, 2016
KitMaker: 1,486 posts
Armorama: 978 posts
Posted: Sunday, February 05, 2017 - 12:59 PM UTC

Quoted Text


Quoted Text

for some reason I cant see the images

can you please repost , please



Hmmm...they look OK on my screen. I post them the exact way I always do. Does anyone else have the same problem?




Looking good here.
RobinNilsson
Staff MemberTOS Moderator
KITMAKER NETWORK
Visit this Community
Stockholm, Sweden
Joined: November 29, 2006
KitMaker: 5,932 posts
Armorama: 4,971 posts
Posted: Sunday, February 05, 2017 - 03:10 PM UTC

Quoted Text

for some reason I cant see the images

can you please repost , please



Hi Guilbert,
I can also see the posted images without problems.
BUT
I can not see Your avatar image, it turns up as the icon used for a broken image link.
Maybe there is some setting in your browser or PC which blocks the image links ? I don't think any ad-blocker would cause this but there are settings in the browsers controlling if the browser is allowed to admit content from other sites.
Have you blocked some sites in your router or browser ?
The image labeled "Oh cr#$, dropped my lighter..." is stored at Photobucket so if the browser or something else stops content from Photobucket you will not see that image.

/ Robin
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Sunday, February 05, 2017 - 05:01 PM UTC
A few more pictures of the "BackTrail" Logistics Trailer...









ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Sunday, February 05, 2017 - 09:36 PM UTC

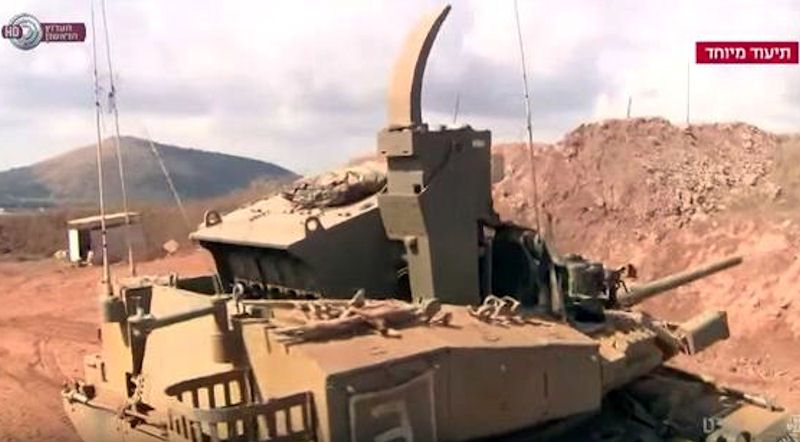

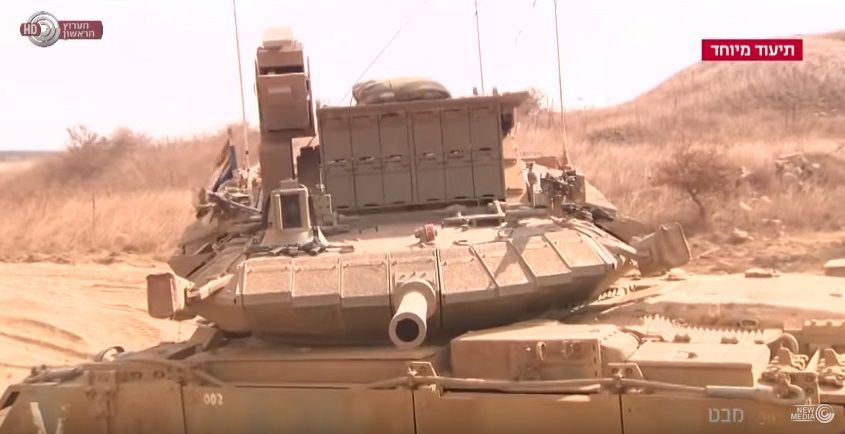

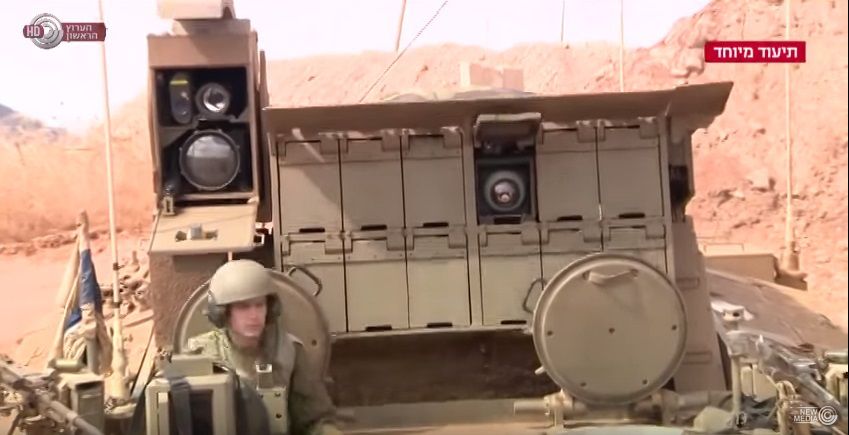

The "Pereh's" Spike NLOS launcher in raised position, with closed...



...and with opened hatches.





Article about the "Pereh" in Hebrew (has been posted before in a fifferent thread): https://www.youtube.com/watch?v=fcm1RjpwYa4

The Spike NLOS in action during the Second Lebanon War: https://www.youtube.com/watch?v=pXw9SqnXqZQ


ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Sunday, February 05, 2017 - 10:07 PM UTC
A beautiful, rather artistic collection of "Merkava II" photos taken by the professional photographer, Noam Garmiza. Enjoy!

http://noamgarmiza.com/home
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Tuesday, February 07, 2017 - 02:11 PM UTC

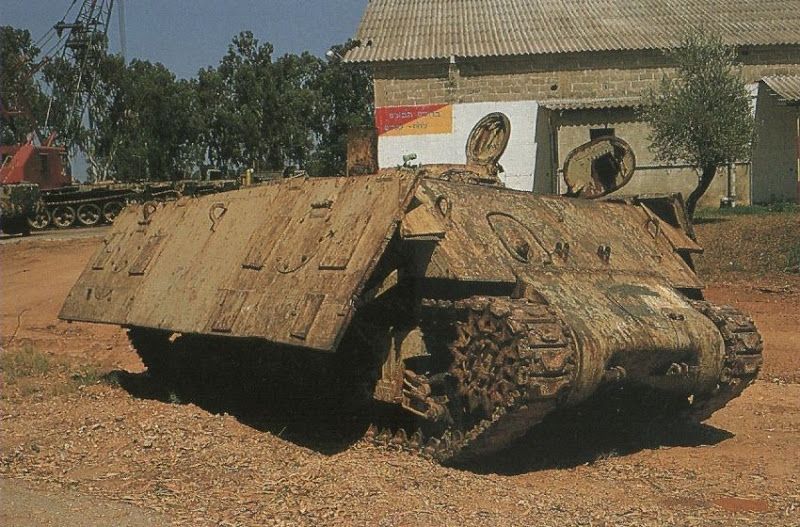

The "Sherman" based moving-target tank.



ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Tuesday, February 07, 2017 - 02:27 PM UTC

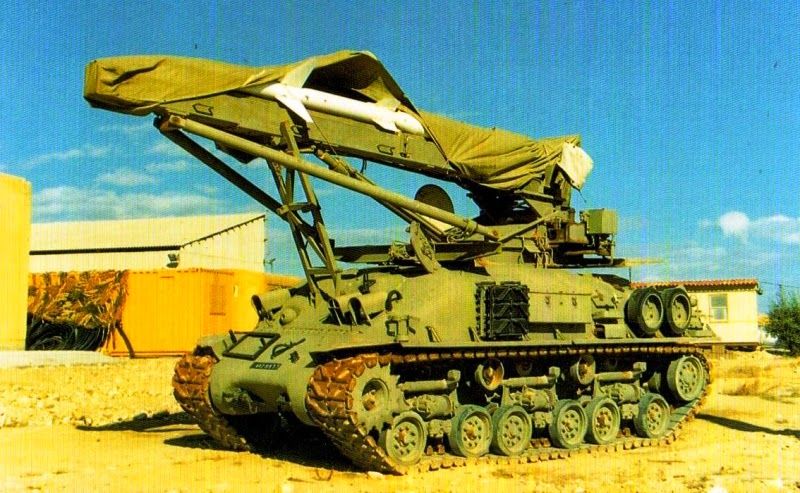

Another "Sherman" based IDF oddity: "Shrike" air-to-ground anti-radar missile modified for ground-launch on M51 platform. These vehicles were operated by IAF's 153rd AA battalion.



One of two preserved examples at the IAF museum in Hatzerim.



ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Tuesday, February 07, 2017 - 02:37 PM UTC
...and yet another one: the letter "Lamed" (L) on the rear indicates that this turretless "Sherman" variant was used for driver training.





ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Tuesday, February 07, 2017 - 03:36 PM UTC

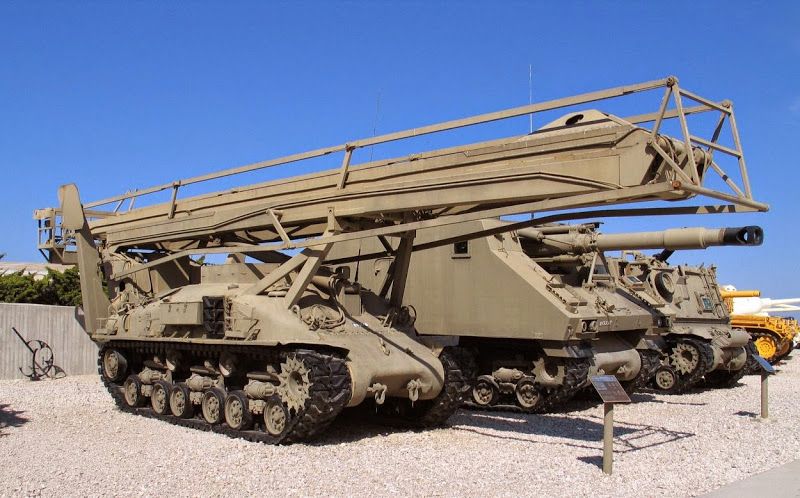

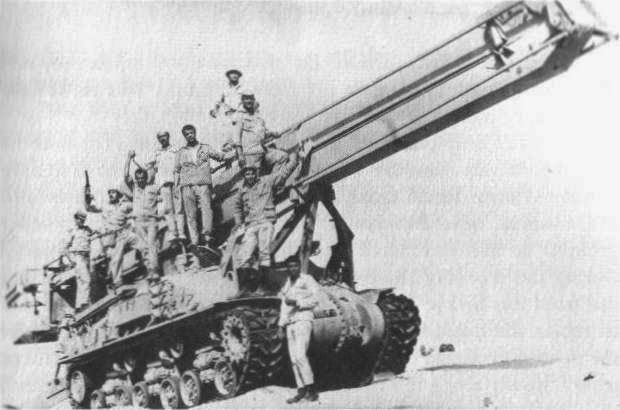

This "Sherman" based mobile observation post utilized a 27m long "Eyal" crane. It was used along the eastern banks of the Suez Canal during the "War of Attrition" between '70-'73.



ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Tuesday, February 07, 2017 - 04:13 PM UTC
"Samson Mk.I" RWS (25 or 30mm gun/"Spike" ATGM combo) on improved M113 platform by "Rafael" during "Eurosatory 2010.











ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Thursday, February 09, 2017 - 08:50 PM UTC
A few new pictures of the "Eitan"...









knewton
Visit this Community
New Zealand
Joined: June 19, 2013
KitMaker: 1,092 posts
Armorama: 979 posts
Posted: Saturday, February 11, 2017 - 01:09 AM UTC
and some of a 'Puma' variant I'd like to see... (as a kit)








note the additional armor on the belly of the last vehicle,

K
ReluctantRenegade
Visit this Community
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,286 posts
Armorama: 2,178 posts
Posted: Saturday, February 11, 2017 - 01:22 AM UTC

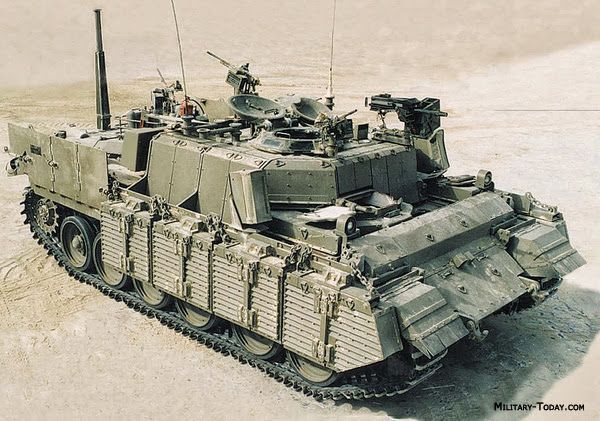

...and another "Nakpadon".

Nagmakava
Visit this Community
England - East Anglia, United Kingdom
Joined: October 18, 2012
KitMaker: 116 posts
Armorama: 110 posts
Posted: Saturday, February 11, 2017 - 12:31 PM UTC
Great pics!!
knewton
Visit this Community
New Zealand
Joined: June 19, 2013
KitMaker: 1,092 posts
Armorama: 979 posts
Posted: Saturday, February 11, 2017 - 12:55 PM UTC

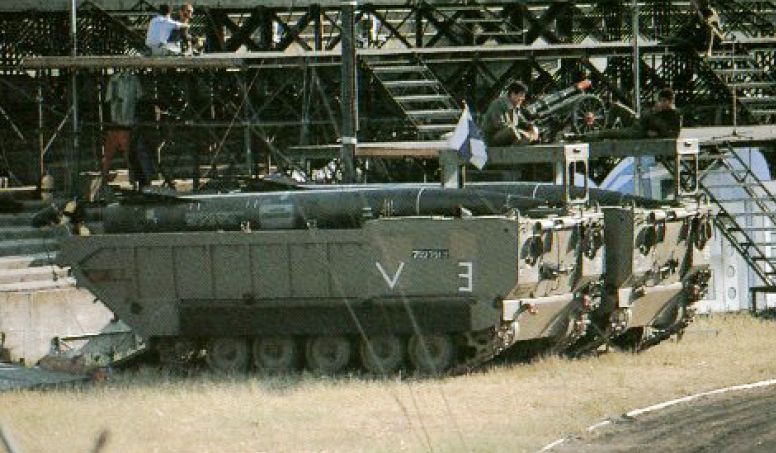

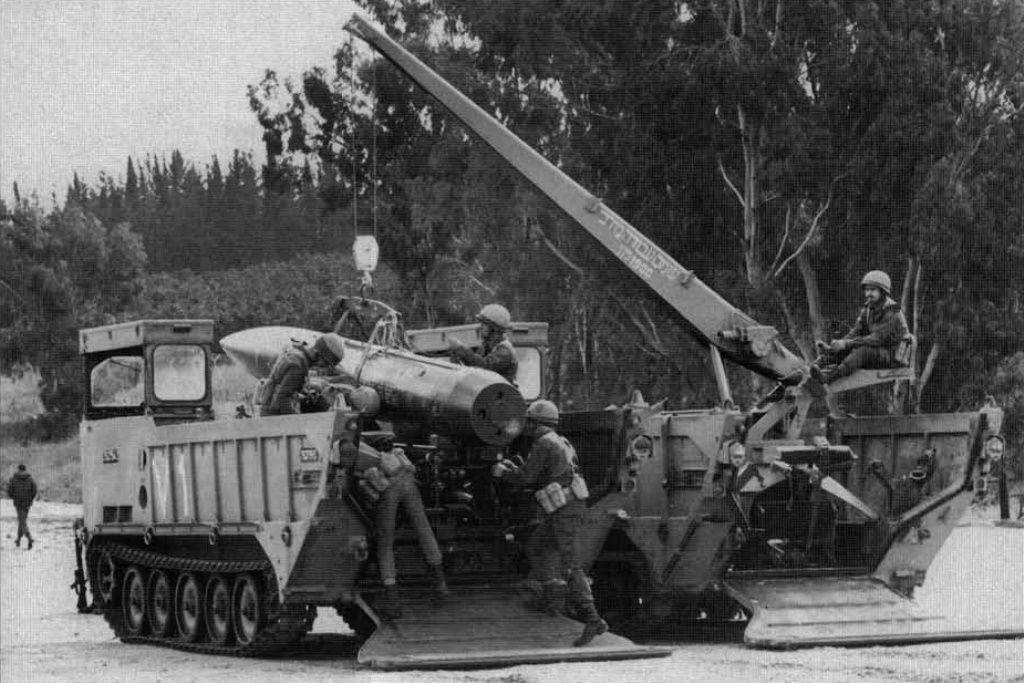

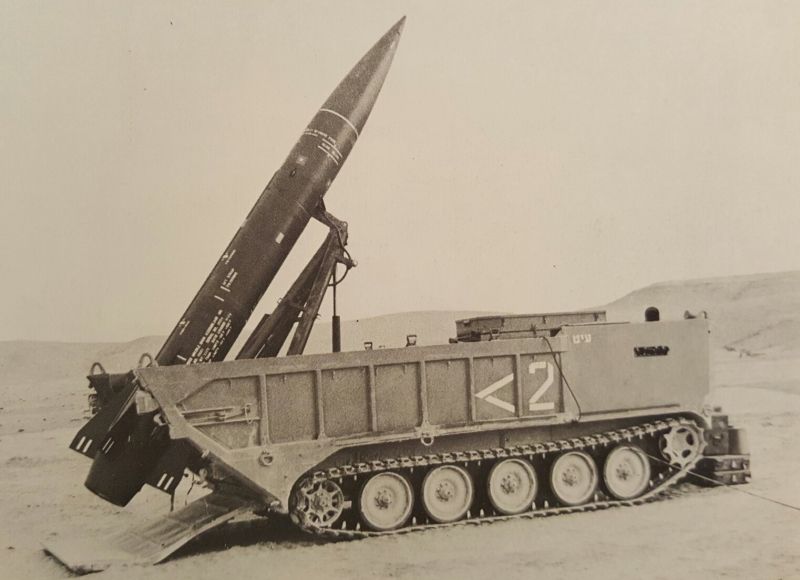

Israelis used the Lance missile, too... who knew?







and, isn't Dragon kitting this vehicle this year?
knewton
Visit this Community
New Zealand
Joined: June 19, 2013
KitMaker: 1,092 posts
Armorama: 979 posts
Posted: Saturday, February 11, 2017 - 01:13 PM UTC
if that is old artillery, then this is the new...

outside



inside



A humvee with Spike
