1/35 IDF Achzarit IFV Project.
gilbertsakr
Visit this Community
New York, United States
Joined: August 20, 2012
KitMaker: 236 posts
Armorama: 228 posts
Posted: Thursday, June 14, 2018 - 10:44 PM UTC
hi

may I have permission to share the images of your achzarit built on our facebook page please ?!

your work is inspiring

thank you
didgeboy
Visit this Community
Washington, United States
Joined: September 21, 2010
KitMaker: 1,843 posts
Armorama: 1,509 posts
Posted: Wednesday, January 15, 2014 - 06:23 PM UTC
Caveman,
You ever finish this build? where are the pictures?
didgeboy
Visit this Community
Washington, United States
Joined: September 21, 2010
KitMaker: 1,843 posts
Armorama: 1,509 posts
Posted: Saturday, July 27, 2013 - 03:21 AM UTC
Amazing caveman, just amazing.
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Saturday, July 27, 2013 - 02:17 AM UTC
Thanks but it got a bit boring wile adding all the small dots so I stopped work on it. I do need to finish this project as I have so many others started.
gilbertsakr
Visit this Community
New York, United States
Joined: August 20, 2012
KitMaker: 236 posts
Armorama: 228 posts
Posted: Wednesday, June 19, 2013 - 05:22 PM UTC
dear, greetings

your work is amazing

what is the white plastic material you used to build this model ?!
where do i fond it ?!~
thanks a million
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Tuesday, May 01, 2012 - 11:03 PM UTC
Yep there's some mistakes on the cupola and I'm not rebuilding it. Seeing that I have alot of customer projects going on right now., I'm still going to find the time to finish this project. Here's a little progress for this week. )--<


:-
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Thursday, April 26, 2012 - 09:28 PM UTC

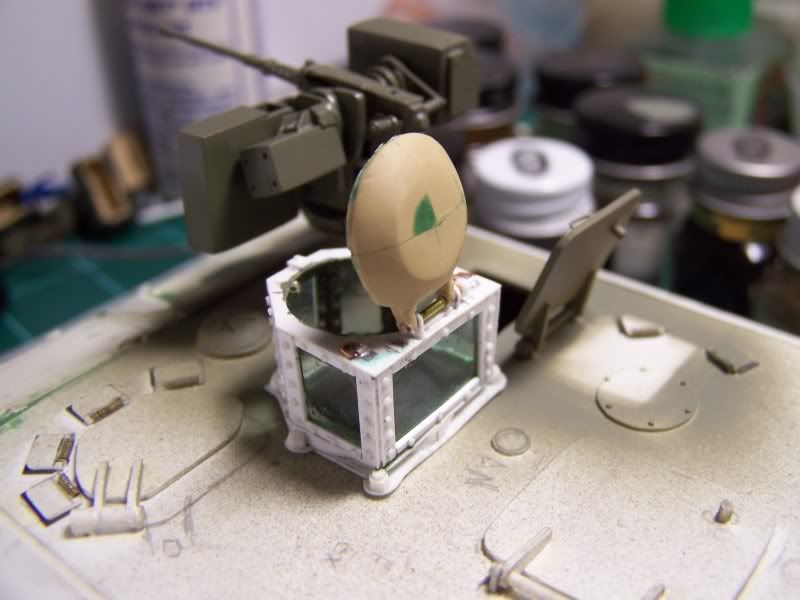

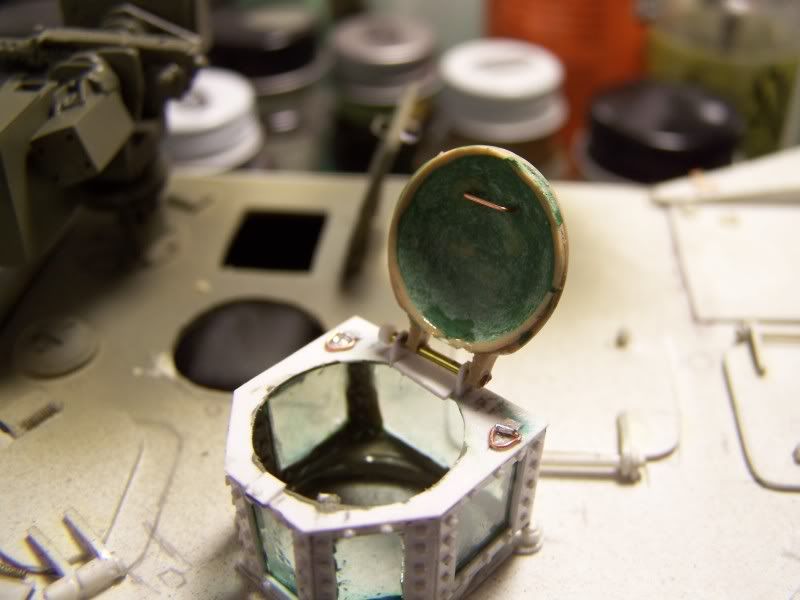

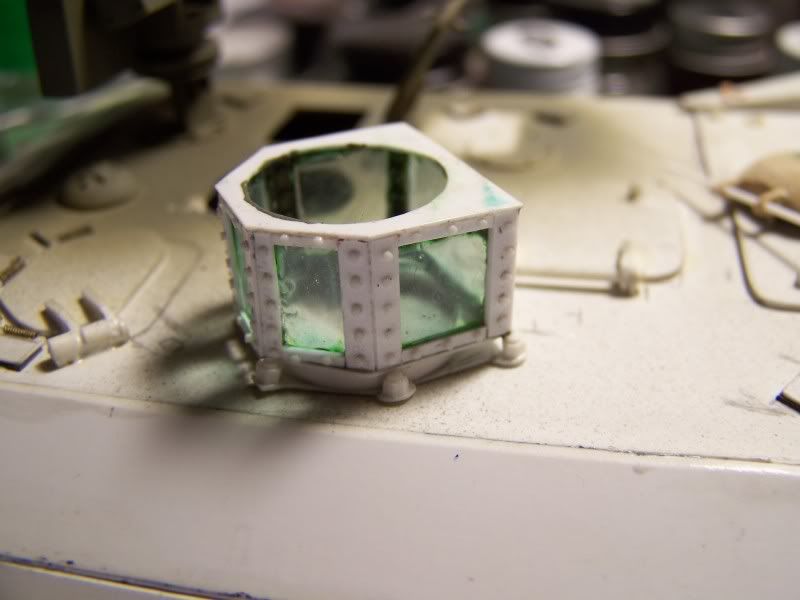

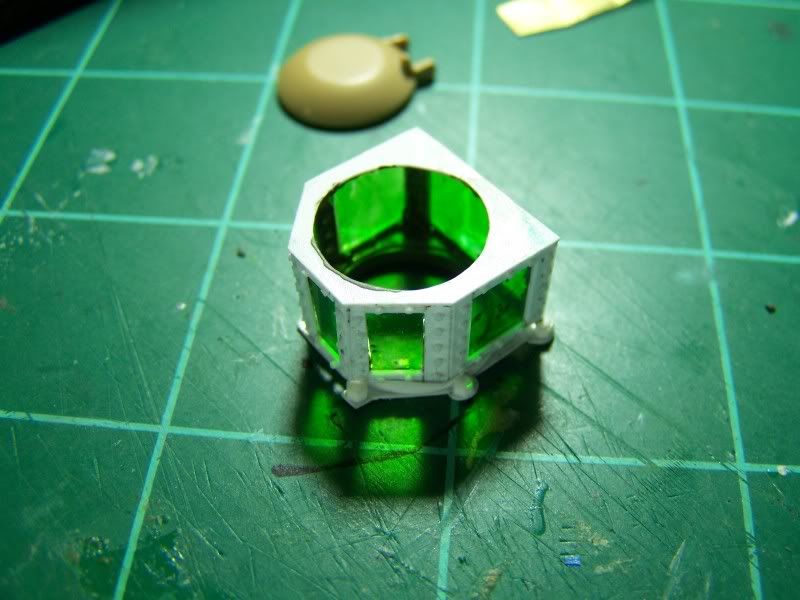

After cleaning our that heave gree clear for the cupola. An adding in a mix of clear blue/green with alot of clear to thin it out. I thing it looks more the part.

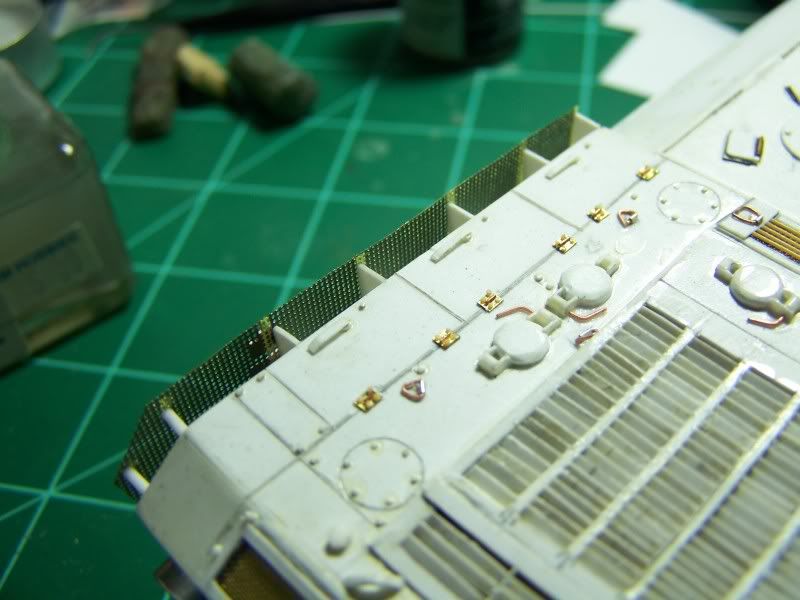

Side skirts added and the rear-besket is next.
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Wednesday, April 25, 2012 - 02:39 PM UTC

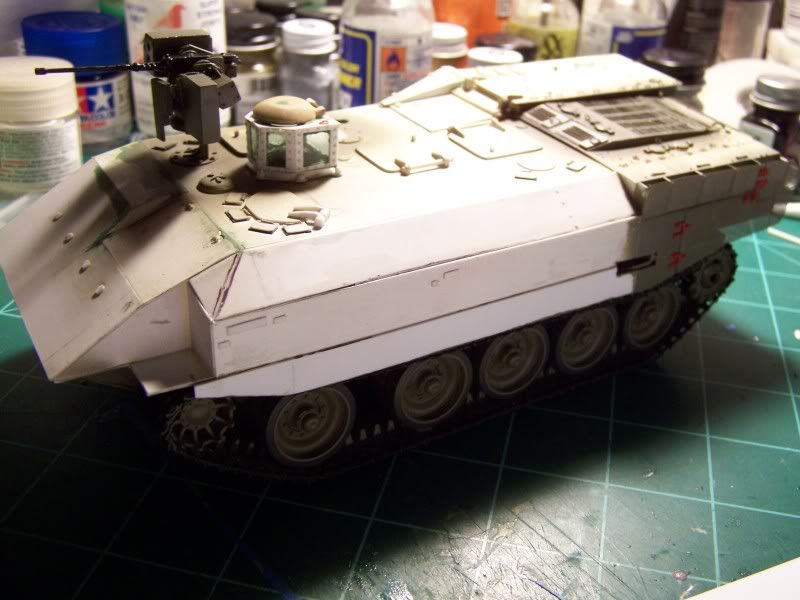

Some painting.


I was thinking of covering the other side but seeing that it's not covered and most of the photos I have of it. I'm not going to cover mine.
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Tuesday, April 24, 2012 - 09:57 AM UTC
thanks and "Spiderfrommars" building three at one time was bit hard., but fun.

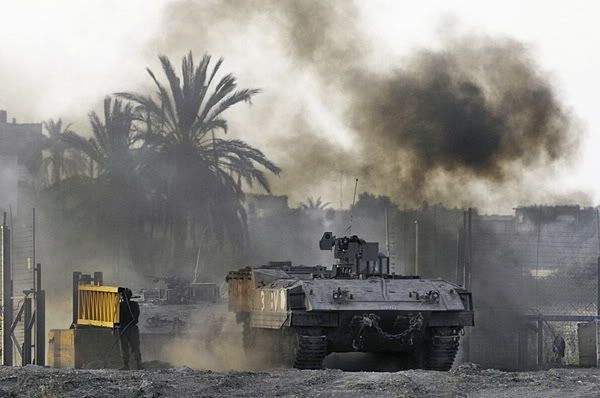

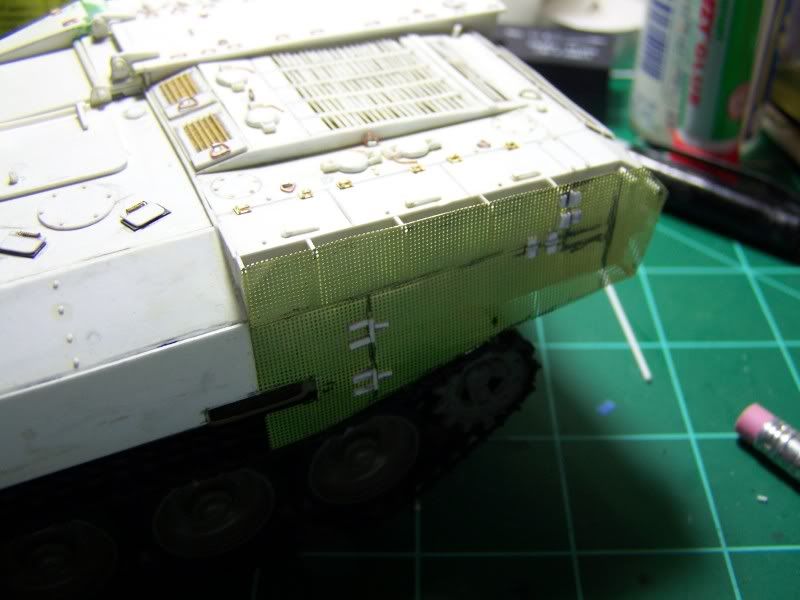

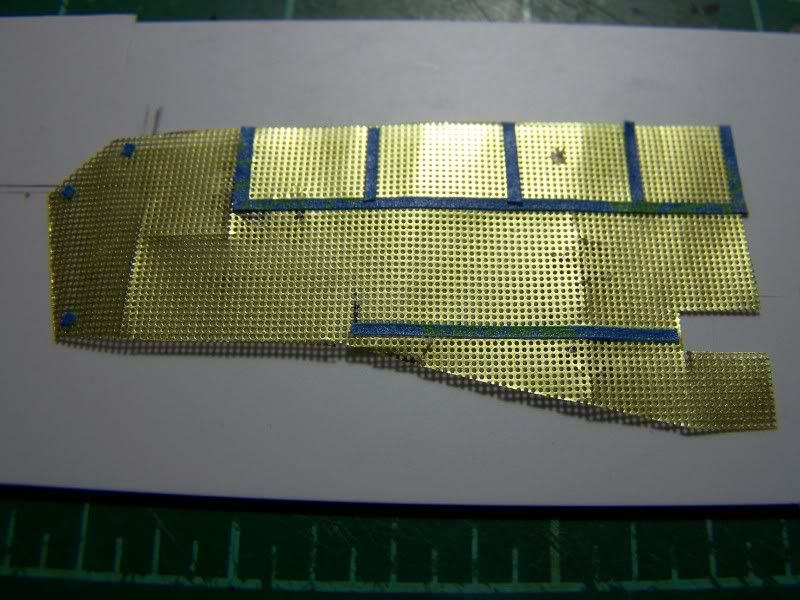

An guys I have gone back and pulled the cover off and painted the side under the mesh cover. Here's a photo of this Achzarit Mk.II in action!
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Monday, April 23, 2012 - 02:31 PM UTC
Thank's "Barthass" An thanks for pointing out that I'm building the Achzarit Mk 2.
It would be cool if I would build the engine to display with my APC.

Here's some work from to day.








Barthass
Visit this Community
Poznaz, Poland
Joined: June 27, 2007
KitMaker: 81 posts
Armorama: 80 posts
Posted: Saturday, April 21, 2012 - 12:57 AM UTC
Very nice model Captin, Your scratch build skills are amazing:)
I'm also finished my Achzarit from Legend few years ago.

Nick, from what I know, Achzarit never had an engine from T-55 - original engine and transmission are to big, and was replaced by powerpack which including General Motors 8V-71 TTA- the same as in M109 (650 hp in Mk.1,)engine and Allison XTG-411-4 transmission. Achzarit Mk.2 have improved powerpack- General Motors 8V-92TA / DDC III (850 hp) engine and Allison XTG-411-5A transmission.

Best regards from Poland
bossman
Visit this Community
Maine, United States
Joined: May 05, 2002
KitMaker: 30 posts
Armorama: 28 posts
Posted: Friday, April 20, 2012 - 03:13 PM UTC
Greta work, glad to see you back at it.
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Friday, April 20, 2012 - 12:59 PM UTC
Yeah "richtlv3"-(Rich) if it's ok that I call you that?. I have bean pulled away from this project to mini times. An now I'm going to get this baby finished! Thanks for the comments and looking in.

An "tanknick22" I'm going to finish this build. An this version is no longer classified as a prototype. This version has bean used in combat operations., so I'm going to keep on building this version.

Now when it comes to witch comflict., I'll go with wich ever photos has the best shot of it.
richtlv3
Visit this Community
Tel Aviv-Yafo, Israel
Joined: April 10, 2011
KitMaker: 95 posts
Armorama: 94 posts
Posted: Thursday, April 19, 2012 - 10:56 PM UTC
one of the great project I have a seen... Good work
tanknick22
Visit this Community
United States
Joined: February 19, 2009
KitMaker: 1,047 posts
Armorama: 1,010 posts
Posted: Thursday, April 19, 2012 - 10:27 PM UTC

Quoted Text

Now after looking over the front of the prototype achzarit. Man that thing look's ugly. I don't like the front of it but I do like the rear of it. So one thing I could do is build my own prototype., but that silly and unrealistic. So if I can find some of the holded screan like Blackwater used. I'll rebuild the rear of my IFV.
But for now I hold off on doing any work to that section.

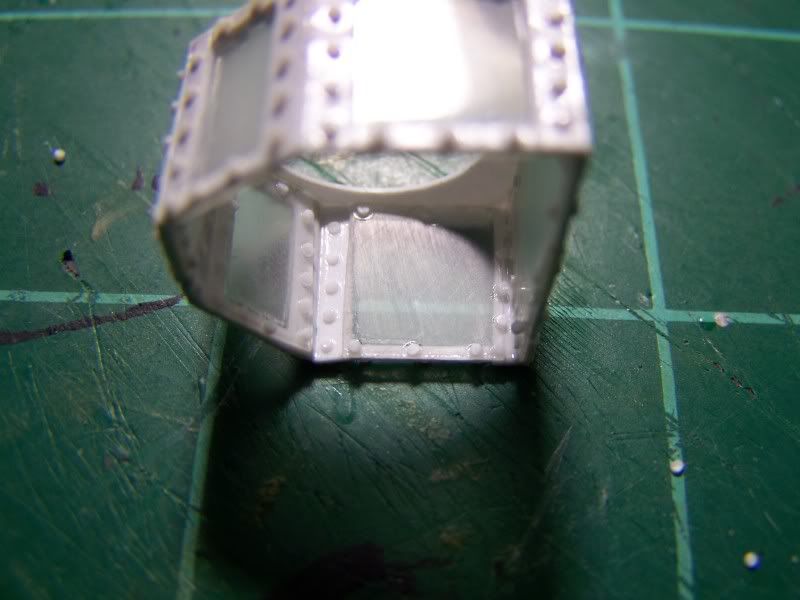

Now I'm still going to work on the front:Right and Left. An yes this mean adding small detailed items like the RCWS MG and LIC protective cupola. That way I can keep working on this project.


Hay dose any one have a photo of the opossite side of my first photo? It would show me just the right shape to build and also show me it that holded screan is used. As it's not used on the left side shown in the first photo.

If you dont want to scratch build it you can alwats get the full resin kit of of the early production model of it from legend
tanknick22
Visit this Community
United States
Joined: February 19, 2009
KitMaker: 1,047 posts
Armorama: 1,010 posts
Posted: Thursday, April 19, 2012 - 10:19 PM UTC

Quoted Text

I'm not going to build the Pototype any more or mix parts. As If I mix the rear section of the Prototype with that of the APC in the first photo. I don't thing any one will be interested in my project as what if any more. SO I'm going to build just what I see in the first photo I posted to start this build. An I found a photo of the othere side.
Now about the use of LIC-Low Intensity Conflict equipment I ment the letters LIC to point out the protective cupola and the RCWS-Remote Control Weapons System. Both use on the production Achzarit T-54-55 APC.


You said: And... still, I do not understand if you're gonna mix the proto with LIC.

Now if it's cool with you and othere I'll keep the Prototpy's rear grille and louvers-"Large box shape". And keep building the APC Fron end, seen in my first photo.


You said: Proto is what it is. There are no RCWS or LIC features on it...

Now remember I started this build so I would not have to use those hole filled screens. As I have no Iead of were I would get them othere that a Eduard PE set. So let me know what you think? So keep the ptoto's rear section, or build the production rear section?

The Achzarit has been in isreali service since the mid 80s early production models had the wheels and engine form the T-55 then the later the engine was replaced with the same engine that is used in the M-109
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Thursday, April 19, 2012 - 07:22 PM UTC

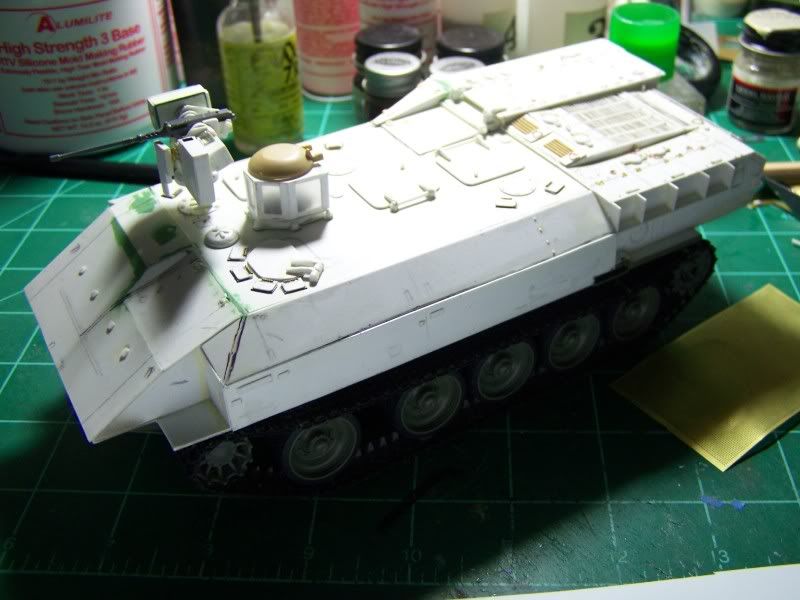

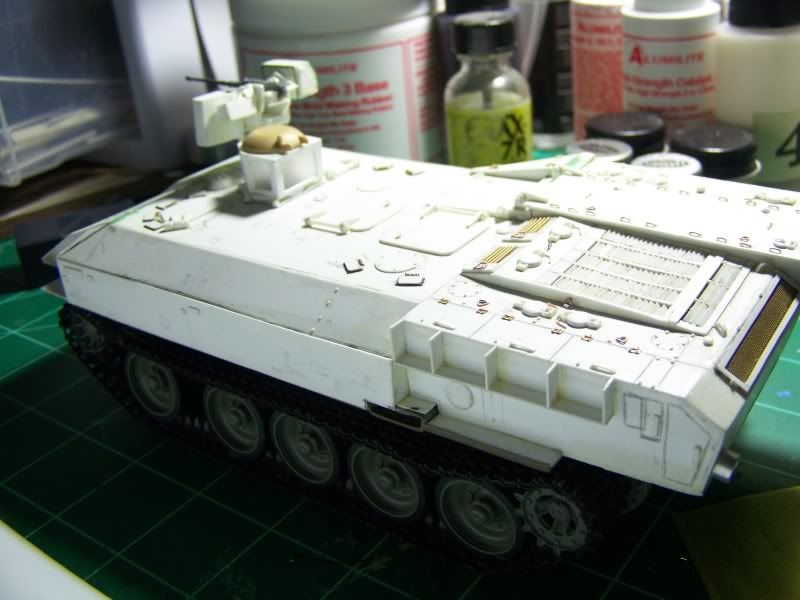

Ok guy's I'm back to work on this baby. and here's some of my update.






Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Monday, January 17, 2011 - 10:33 PM UTC
Hay any one want to know how I made those small looking tubes over my copper wire loops. Click on my Tutoral link: Making Simulated Loop mounts
This is what I was asking BlackWater about on his Achzarit project. Well now any one can use this it you want.


Let my know what you all think about my solution.
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Monday, January 17, 2011 - 02:13 PM UTC
Hello every one and thanks for your comments. Well here's your new surpris for the new year. I came up with a way to have that silver looking tub around my copper wire loops.


Sorry it's taking so long but this thing just has a lot of fine detail to add.






seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Friday, December 31, 2010 - 02:34 AM UTC
This is truly outstanding scratch build
I love it Caveman

Happy New Year to you and your family
cheers
Seb
BLACKWATER
Visit this Community
Yunnan, China / 简体
Joined: August 05, 2010
KitMaker: 449 posts
Armorama: 441 posts
Posted: Friday, December 31, 2010 - 01:34 AM UTC
Look forward to more surprises
Happy New Year Caveman
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Tuesday, December 28, 2010 - 10:56 PM UTC

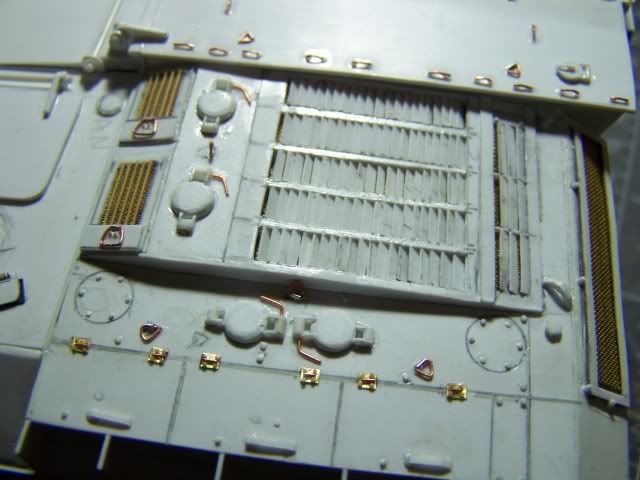

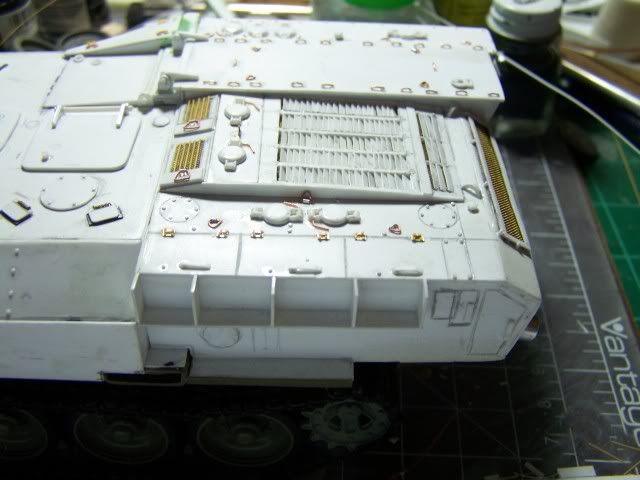

Hay W.J. I think you engine vent are just fine. I only did my vents in a little different looking way so I would not look as if I'm copying your work. Like your Achzarit I wanted a different look to my achzarit. That's why I'm build one with that RCWS and the centurion wheels.

Well I'm still working on laying each vent lid one by one. An it's taking some time, so I jump to doing othere things on the hull like the wheels.


I have more to come...
BLACKWATER
Visit this Community
Yunnan, China / 简体
Joined: August 05, 2010
KitMaker: 449 posts
Armorama: 441 posts
Posted: Tuesday, December 28, 2010 - 04:00 AM UTC
Great Caveman, engine cooling window is right, I totally wrong.
Captin_Caveman_III
Visit this Community
Louisiana, United States
Joined: October 20, 2008
KitMaker: 1,069 posts
Armorama: 1,062 posts
Posted: Monday, December 27, 2010 - 05:36 AM UTC
Well hello every one I'm starting to get back to work on this and othere IDF projects. So here's some of me casting my own roadwheels.


Shanelangston
Visit this Community
Wyoming, United States
Joined: October 27, 2010
KitMaker: 85 posts
Armorama: 84 posts
Posted: Friday, December 10, 2010 - 03:37 PM UTC
Truly amazing! Keep it up 'cause I really want to see this one finished!
