The LAV pic Thread
ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,203 posts
Armorama: 1,721 posts
Posted: Thursday, February 28, 2008 - 12:40 AM UTC
Hi all. I've been a fan of the LAV series for a long time now. I wanted to start a picture thread showcasing only LAV variants. Yes, all versions are welcome...III's, Strykers, LAV-25, you know what I'm talking about. So be a sport and post your LAV builds for everyone to see. Okay, I'll start.

LAV III:





M1129 Mortar:






M1134 ATGM:




sauceman
Visit this Community
Ontario, Canada
Joined: September 28, 2006
KitMaker: 2,672 posts
Armorama: 2,475 posts
Posted: Thursday, February 28, 2008 - 12:47 AM UTC
What a good idea Charles!

cheers
Epi
Visit this Community
Texas, United States
Joined: December 22, 2001
KitMaker: 3,570 posts
Armorama: 2,542 posts
Posted: Thursday, February 28, 2008 - 04:58 AM UTC
Ok, here is mine. It is just about done, so I thought I would give you just a little taste of it. The wheels and under carriage is done with MIG powders. I have weather the sides, back and top with powders and i will call it done, hopefully by this weekend.






My wife just took the pictures and tried to do here best, got to love her for trying. More pictures will be taken when it is completely finished.
ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,203 posts
Armorama: 1,721 posts
Posted: Thursday, February 28, 2008 - 05:20 AM UTC
Nice addition Pete. -btw, I see an unfinished trumpeter in the corner there.
sauceman
Visit this Community
Ontario, Canada
Joined: September 28, 2006
KitMaker: 2,672 posts
Armorama: 2,475 posts
Posted: Thursday, February 28, 2008 - 05:48 AM UTC
Here's my first LAV III.





cheers
Epi
Visit this Community
Texas, United States
Joined: December 22, 2001
KitMaker: 3,570 posts
Armorama: 2,542 posts
Posted: Thursday, February 28, 2008 - 06:29 AM UTC
Yup Charles it's the Trumpeter Stryker. When I got the AFV Stryker, I kind of put it to the side. I went ahead and got the addtional armor and slat armor for it and decided to bring it back to life. I will tkae some pictures of it this weekend when I finish the other one.
bulivyf
Visit this Community
Praha, Czech Republic
Joined: April 03, 2006
KitMaker: 2,450 posts
Armorama: 2,409 posts
Posted: Thursday, February 28, 2008 - 06:56 AM UTC
Here is some my Stryker`s.

M1126 ICV





M1126 ICV NTC





M1126 ICV OIF with Slat





M1127 RV OIF




f1matt
Visit this Community
Manitoba, Canada
Joined: August 13, 2006
KitMaker: 1,021 posts
Armorama: 805 posts
Posted: Thursday, February 28, 2008 - 07:29 AM UTC
Great idea Charles. This is along the same lines as the P-47 Thunderbolt SIG over at Aeroscale.

Well done Pete. The SLAT looks incredible. Was it tough to put together?

The LAV turned out great Rick. The signs are the icing on the....Light Armoured Vehicle.

-Matt
Epi
Visit this Community
Texas, United States
Joined: December 22, 2001
KitMaker: 3,570 posts
Armorama: 2,542 posts
Posted: Thursday, February 28, 2008 - 07:44 AM UTC
Matt,
It was a little trouble at first, especially since the slat was the one designed for the Trumpeter kit and I put it on the AFV kit. But with the help of Milo, I scratched all the addtional armor like he did and managed the slat ok.

I DON"T KNOW HOW MILO DOES IT WITH ALL THAT SLAT ON HIS STRYKERS?
ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,203 posts
Armorama: 1,721 posts
Posted: Thursday, February 28, 2008 - 07:54 AM UTC
great pic guys. Love the lav Rick. Well done. I'm making some changes on mine, so newer improvments will be shown later. Correcting some and adding some... Milo is a freak'in robot...haha
ErikHagglund
Visit this Community
Uppsala, Sweden
Joined: November 09, 2003
KitMaker: 120 posts
Armorama: 105 posts
Posted: Thursday, February 28, 2008 - 02:55 PM UTC
Fantastic looking model everyone. Rick that lav 3 came out well. Milo awesome work...and of course Charles...havn't forgotten about you. One of my favorite modellers. Great thread.
junglejim
Visit this Community
Alberta, Canada
Joined: February 18, 2003
KitMaker: 1,712 posts
Armorama: 1,614 posts
Posted: Friday, February 29, 2008 - 07:08 AM UTC
Some old, some new.

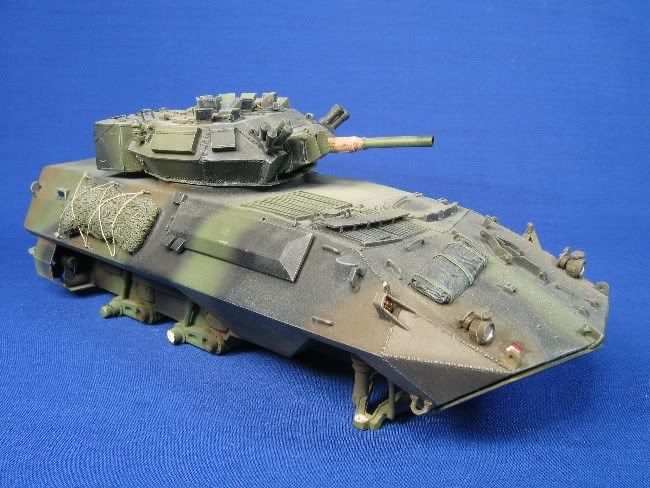

A Cougar, one of my first major scratchbuilds, done in the late 1980's using Esci's LAV-25 lower hull, AA wheels and an AA Scorpion turret.
Then:

And now (after being in a box for ?? years, wheels used on another project?):

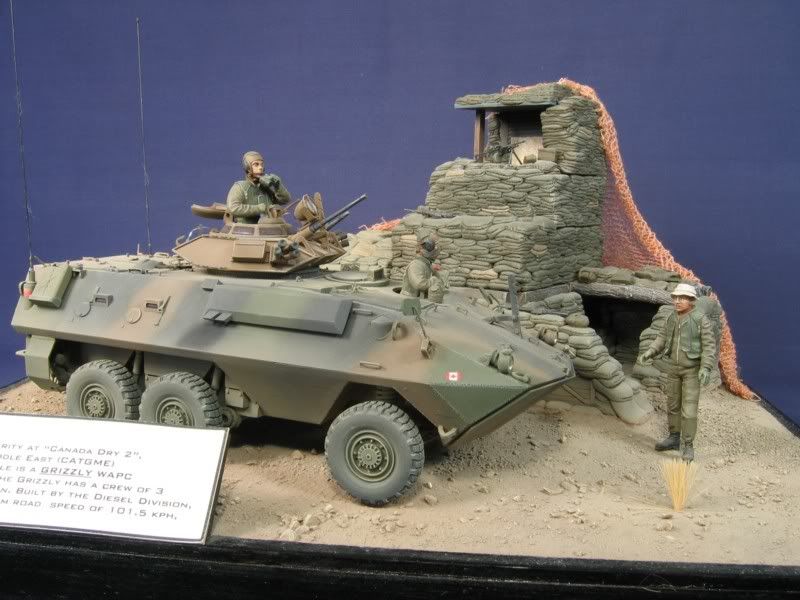

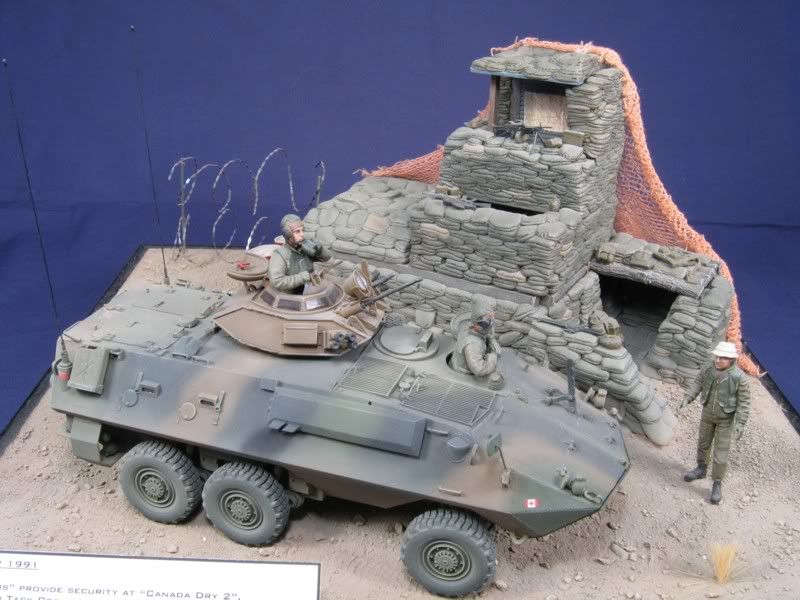

Grizzly:

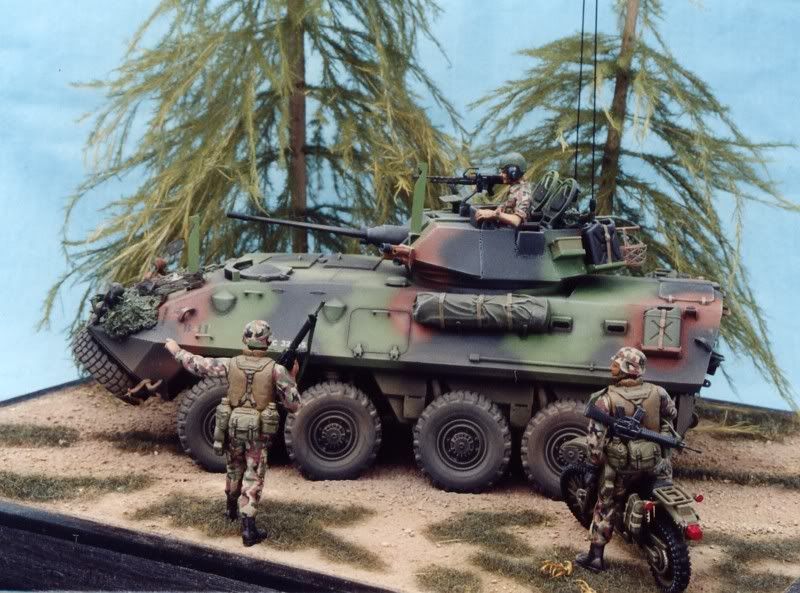

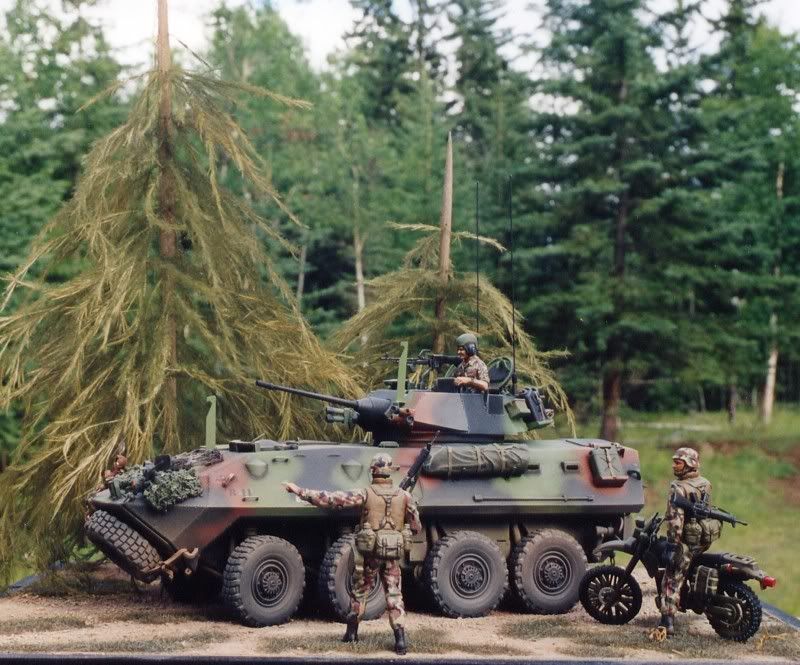

Italeri LAV-25. This was an article in MIS way back:

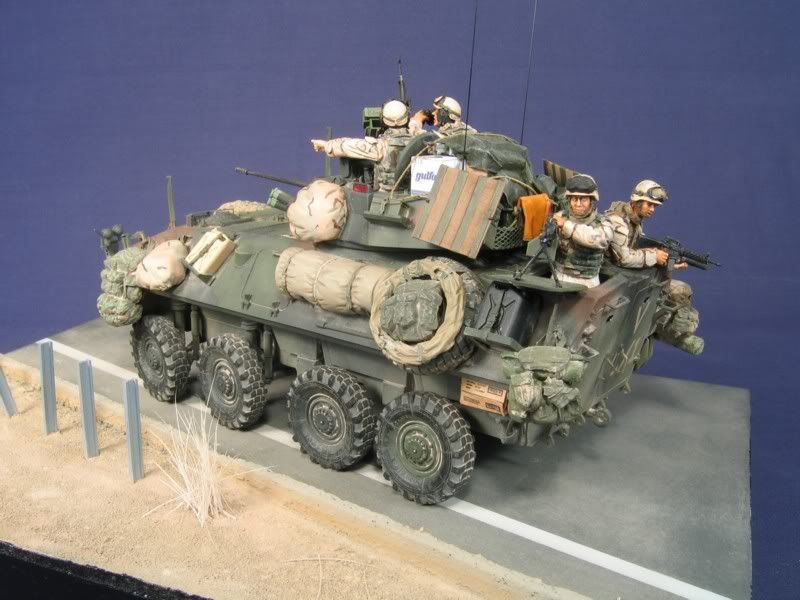

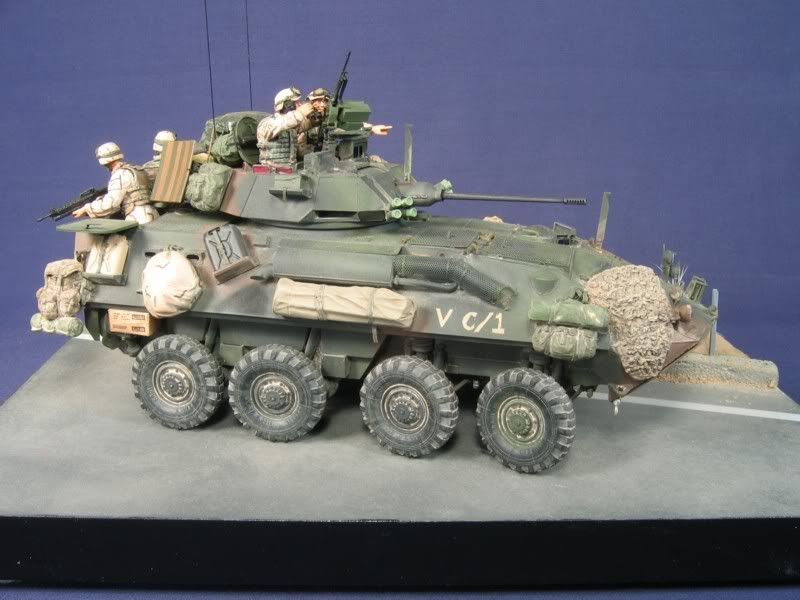

And a recent build. Trumpeter LAV-25, Warriors figures. Sneak peak, this build will be featured in an upcoming Osprey Modelling book.



Looking forward to the LAV-III, want to do a Coyote, Bison, all the rest of the Canadian LAV's!

Cheers,
Jim
dexter059
Visit this Community
Region de Valparaiso, Chile
Joined: July 28, 2005
KitMaker: 1,569 posts
Armorama: 1,385 posts
Posted: Friday, February 29, 2008 - 08:01 AM UTC
Agree, this is great thread!

Cardoen/Mowag Piraña 6x6
Chilean Army

Big scratch conversion of old Italeri LAV-25



Famae/Mowag Piraña 8x8
Chilean Army

One of my first scratch attempts, not big but useful to learn



M-1126 Stryker ICV
US Army

Trumpeter kit with AFV Club RWS, Real Model wheels and Voyager PE suspension covers



This one is on the works, haven´t gathered the spirit to finish the job This one is from AFV Club, with Blast Models stowage sets, Real Model wheels and Voyager PE suspension covers



Keep it coming!

Cheers
ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,203 posts
Armorama: 1,721 posts
Posted: Friday, February 29, 2008 - 09:15 AM UTC
Wow guys...I like the recent addition. Awesom models. Some great talented filks on this board....I like..... Keep it coming...
bulivyf
Visit this Community
Praha, Czech Republic
Joined: April 03, 2006
KitMaker: 2,450 posts
Armorama: 2,409 posts
Posted: Friday, February 29, 2008 - 09:20 AM UTC
Very nice. I next week place here LAV III finished(first version with blast shield)
chris1
Visit this Community
Auckland, New Zealand
Joined: October 25, 2005
KitMaker: 948 posts
Armorama: 139 posts
Posted: Friday, February 29, 2008 - 09:26 AM UTC
Charles
Very cool thread

and to you all
Who makes the LAV III in 1/72,1/48,135th (I'm not to fussy)
so I can have a KIWI LAV as used by the NZ army
any ideas .

I really should carry a camera, about 12 mths ago I passed a convoy of about 6 KIWI LAVs parked on the side of the road photo op missed.....BUGGER

Cheers
Chris
Epi
Visit this Community
Texas, United States
Joined: December 22, 2001
KitMaker: 3,570 posts
Armorama: 2,542 posts
Posted: Friday, February 29, 2008 - 09:47 AM UTC
Did this trumpeter LAV-25 last year and it was posted here as a feature:





Here are some some-what better pictures of my completed AFV Stryker. I posted more of them in another blog thread:





ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,203 posts
Armorama: 1,721 posts
Posted: Friday, February 29, 2008 - 11:38 AM UTC
nice LAV-25 Pete.
LeoCmdr
Visit this Community
Alberta, Canada
Joined: January 19, 2005
KitMaker: 4,070 posts
Armorama: 3,902 posts
Posted: Friday, February 29, 2008 - 02:41 PM UTC
Here is my Canadian AVGP Cougar.....modelled as close as I could get it to the UNPROFOR Cougar I commanded in Bosnia in 1994.



ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,203 posts
Armorama: 1,721 posts
Posted: Friday, February 29, 2008 - 09:43 PM UTC
Very nice Jason.
NebLWeffah
Visit this Community
Alberta, Canada
Joined: October 13, 2004
KitMaker: 1,683 posts
Armorama: 1,248 posts
Posted: Saturday, March 01, 2008 - 08:16 AM UTC
Jason inspired me to build BVM's Cougar kit into an UNPROFOR Canadian AVGP Cougar serving in Bosnia.....










Nice idea for a thread Charles.....
cheers

Bob
bulivyf
Visit this Community
Praha, Czech Republic
Joined: April 03, 2006
KitMaker: 2,450 posts
Armorama: 2,409 posts
Posted: Saturday, March 01, 2008 - 08:50 AM UTC
Wow!! Very nice Cougar`s and LAV`s.
Charles very good idea.
Miloslav
LeoCmdr
Visit this Community
Alberta, Canada
Joined: January 19, 2005
KitMaker: 4,070 posts
Armorama: 3,902 posts
Posted: Saturday, March 01, 2008 - 01:09 PM UTC
Here's a USMC KFOR LAV 25 I built a while back....it has a full interior....hull and turret.....lots of work was done to the AEF Designs LAV 25 interior set to sort it out for this build.











RomeoKilo
Visit this Community
Victoria, Australia
Joined: December 03, 2007
KitMaker: 160 posts
Armorama: 155 posts
Posted: Saturday, March 01, 2008 - 10:28 PM UTC
LeoCmdr that lav is fantastic.

Im in the process of scratching a full interior and turret for an ASLAV. Got any close ups of your interior??

And where did you score the helmet resting on the drivers hatch??

Cheers

Ray
LeoCmdr
Visit this Community
Alberta, Canada
Joined: January 19, 2005
KitMaker: 4,070 posts
Armorama: 3,902 posts
Posted: Sunday, March 02, 2008 - 05:07 AM UTC
Thanks for the compliment......there are crew helmets on on three hatches actually...they were made from using the helmets in the Dragon US tank crew set.....some curled wire drop cords and PE microphones were added.

Sorry....no interior images....I will have to dust off the LAV and get around to taking some.
